Disassembling Centre Console

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip fastening nut and check it, replace it if necessary.

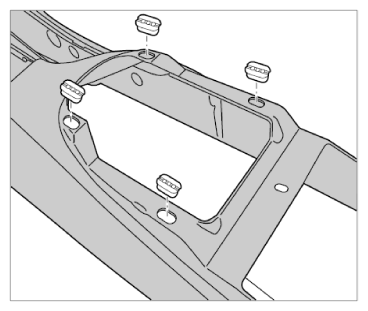

    Fig 1: Unclipping Fastening Nut
    G09827171Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn over center console.
  3. Unscrew fastening screw -1-  . Press locking lugs -arrows A-  in and remove locking mechanism insert -2-  (-arrow-  ).

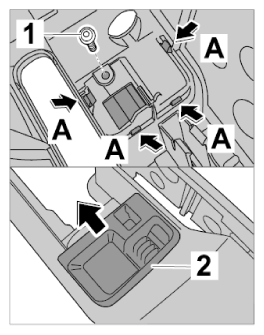

    Fig 2: Pressing Locking Lugs
    G09827172Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew fastening screws -1-  and remove extension -2-  from center console -3-  (-arrow-  ).

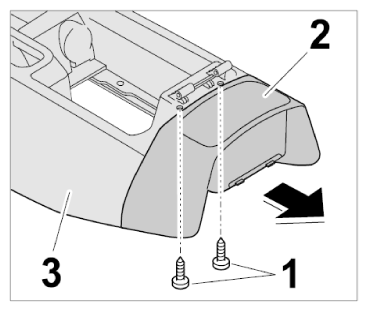

    Fig 3: Removing Extension
    G09827173Courtesy of PORSCHE CARS NORTH AMERICA, INC.
