Assembling Centre Console

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only if replacing the center console.

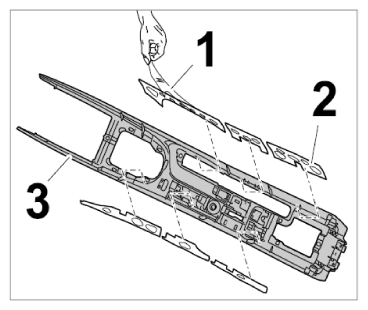

Remove protective film -1- and stick sound absorbent film -2- on the inside of the center console -3- .

Fig 1: Sticking In Sound Absorbent Film
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

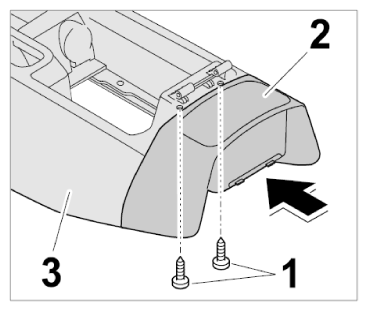

Position extension -2- on the center console -3- (-arrow- ) and secure using the fastening screws -1- .

Fig 2: Installing Extension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

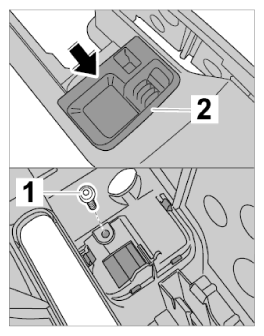

Press in locking mechanism insert -2- (-arrow- ) until it engages and secure in place using the fastening screw -1- .

Fig 3: Pressing Locking Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

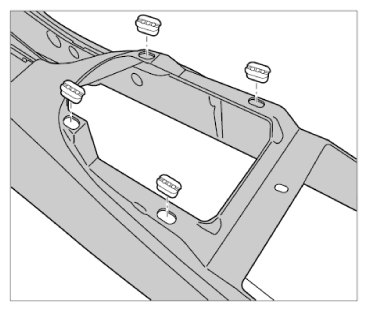

Press in fastening nut.

Fig 4: Install Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
