Removing Centre Console (Without Multimedia Interface)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

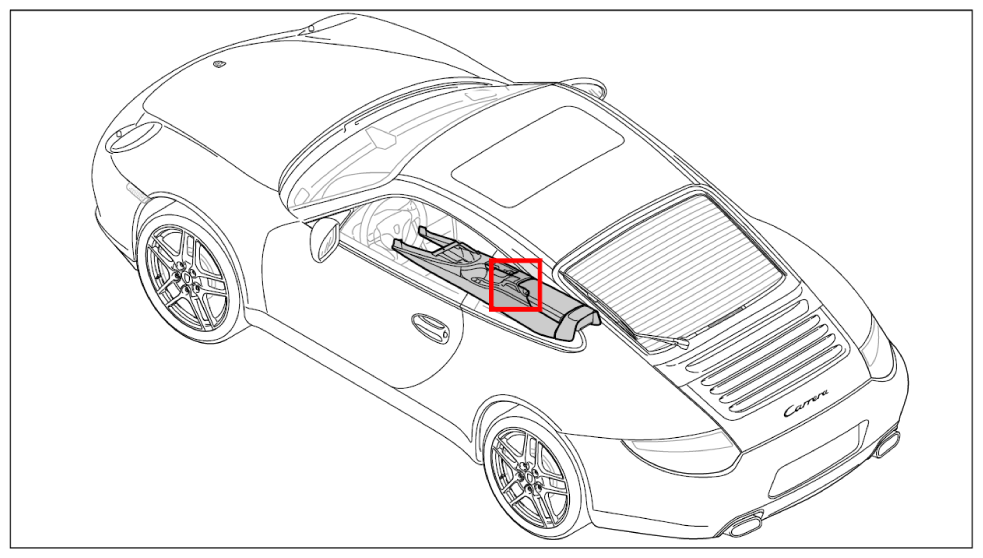

Fig 1: Identifying Center Console Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove cover for handbrake lever.

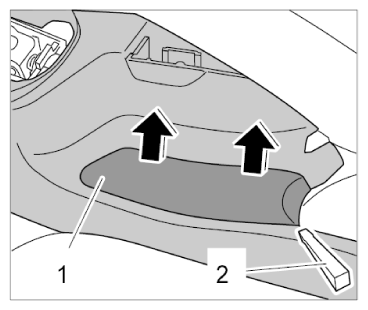

Fig 2: Removing Cover For Handbrake Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull handbrake lever.
2. 1.2. Unclip cover for handbrake lever -1- using a plastic wedge -2- (-arrows- ).
Disconnect plug connection for center console wire harness.

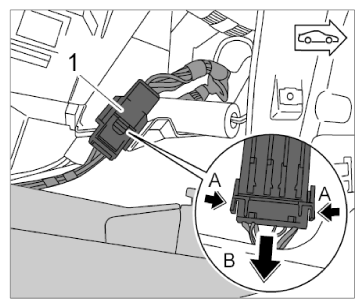

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release plug connection -1- by pressing in the locking lugs -arrows A- and disconnect it -arrow B- .
Remove center console insert.

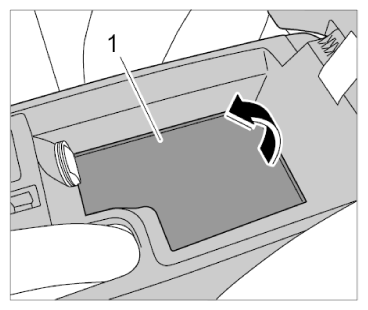

Fig 4: Removing Center Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Open the lid on the package box.
2. 3.2. Remove center console insert at the rear -1- (-arrow- ).
Remove center console floor at the rear.

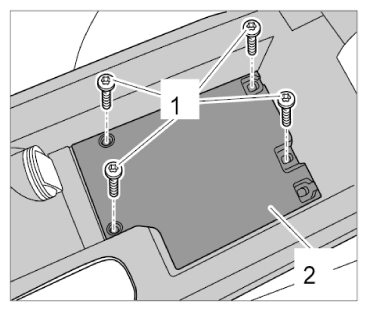

Fig 5: Removing Center Console Floor (Rear)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Unscrew fastening screws -1- and remove center console floor at the rear -2- .
Remove center console.
1. 5.1. Close the lid on the package box.
2. 5.2. Unscrew fastening screws -1- .

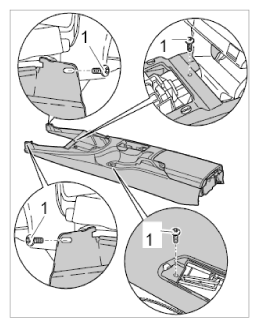

  Fig 6: Releasing Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 5.3. Pivot the center console -1- upwards -arrow A- and remove it -arrow B- .

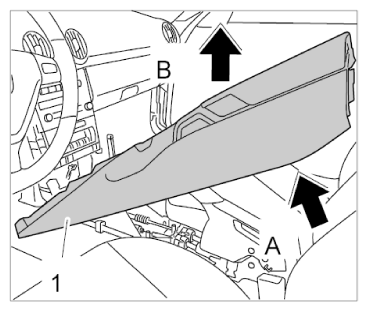

  Fig 7: Removing Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
