Removing Centre Console (With Multimedia Interface)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

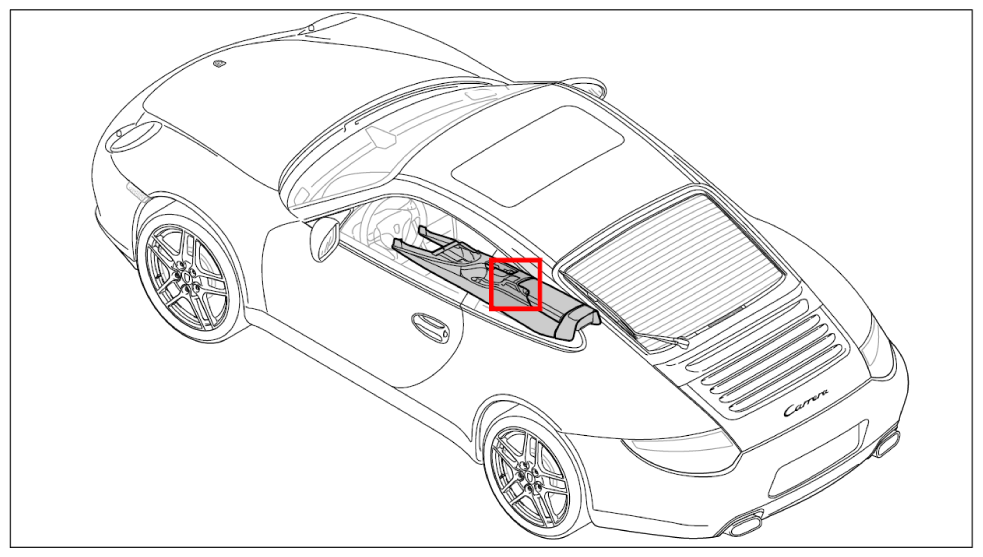

Fig 1: Identifying Center Console Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove cover for handbrake lever.

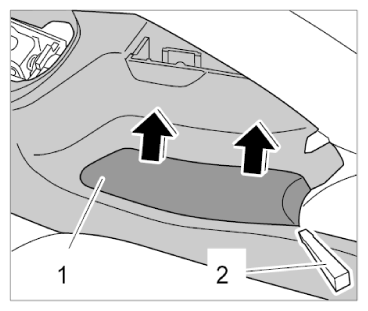

Fig 2: Removing Cover For Handbrake Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull handbrake lever.
2. 1.2. Unclip cover for handbrake lever -1- using a plastic wedge -2- (-arrows- ).
Disconnect plug connection for center console wire harness.

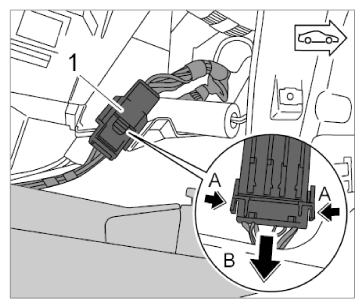

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release plug connection -1- by pressing in the locking lugs -arrows A- and disconnect it -arrow B- .
Remove center console floor at the rear.

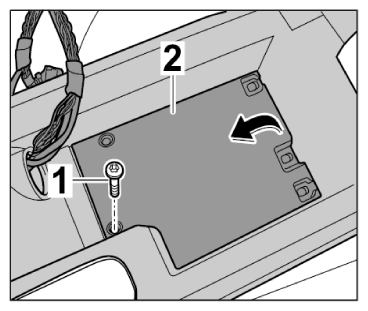

Fig 4: Removing Center Console Floor At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew fastening screw -1- and remove center console floor at the rear -2- (-arrow- ).
Remove center console.
1. 4.1. Unscrew fastening screws -1- .

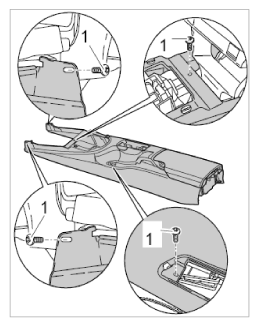

  Fig 5: Identifying Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Swivel center console -1- up slightly -arrow A- and slide wire harness for multimedia interface -2- through the opening in the center console -arrow B- .

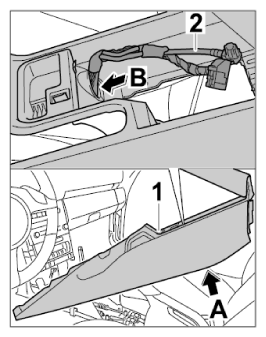

  Fig 6: Releasing Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Remove center console -1- .
