Installing Centre Console (Without Multimedia Interface)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install center console.

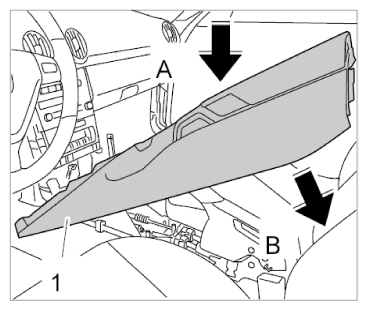

Fig 1: Installing Center Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Fit the center console -1- (-arrow A- ) and align it -arrow B- .
2. 1.2. Tighten fastening screws -1- .

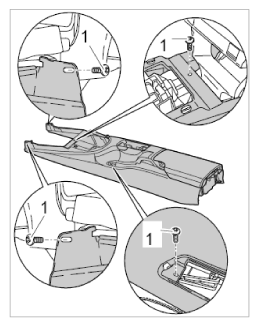

  Fig 2: Securing Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

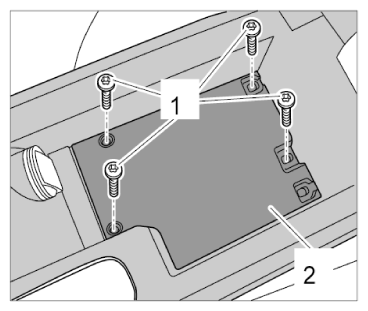

Install center console floor at the rear.
1. 2.1. Open the lid on the package box.
2. 2.2. Fit center console floor at the rear -2- and secure with the fastening screws -1- .
Install center console insert.

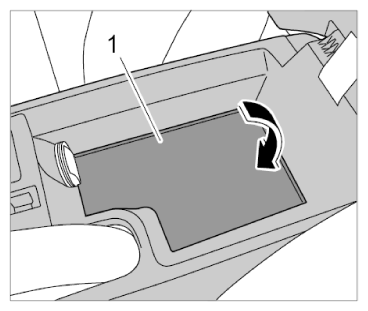

Fig 4: Installing Center Console Insert
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Fit center console insert at the rear -1- (-arrow- ) and close the lid on the package box.
Lock plug connection for center console wire harness.

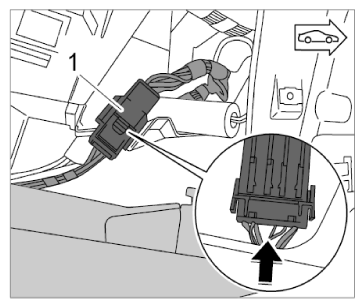

Fig 5: Locking Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Push the plug connection -1- together until it locks with an audible click -arrow- .
Install cover for handbrake lever.

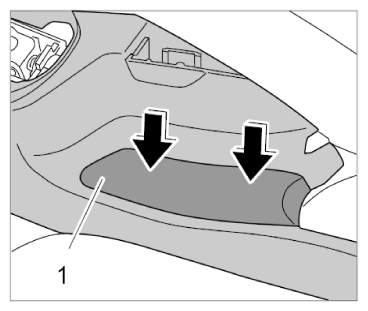

Fig 6: Installing Cover For Handbrake Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Press in cover for handbrake lever -1- (-arrows- ) until it engages securely.
