Removing Footwell Outlet Vent Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

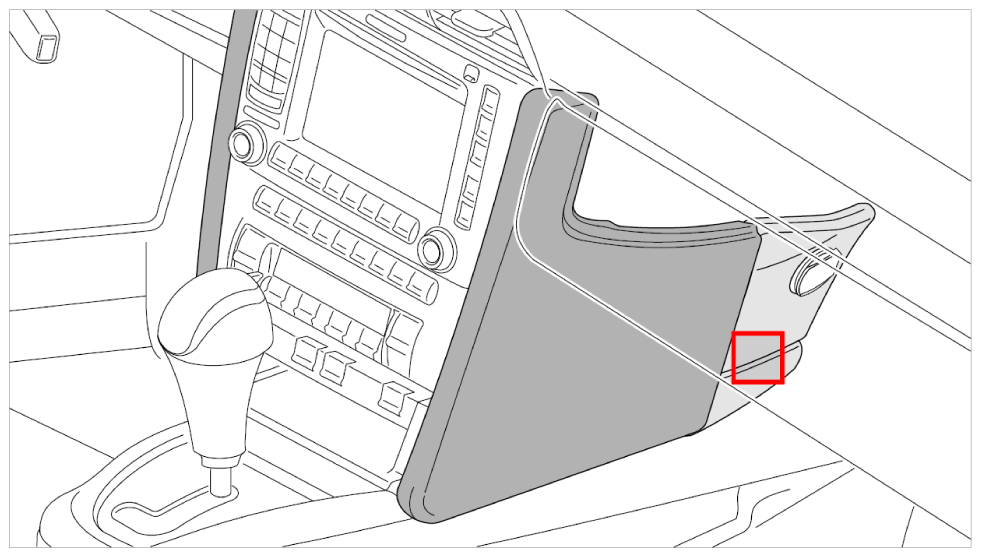

Fig 1: Identifying Footwell Outlet Vent Cover Installation Position
G09827125Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -1-  and take out footwell outlet vent cover -2-  .

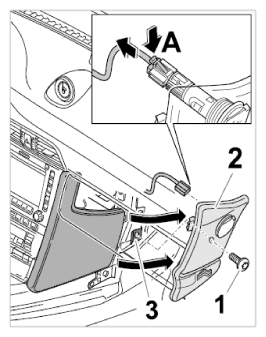

    Fig 2: Removing Footwell Outlet Vent Cover
    G09827126Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Only passenger's side.

  2. Release electric connector -arrow A-  and pull off from the socket.
  3. Check fastening nut -3-  , replace if necessary.
