Installing Centre Console Cover: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

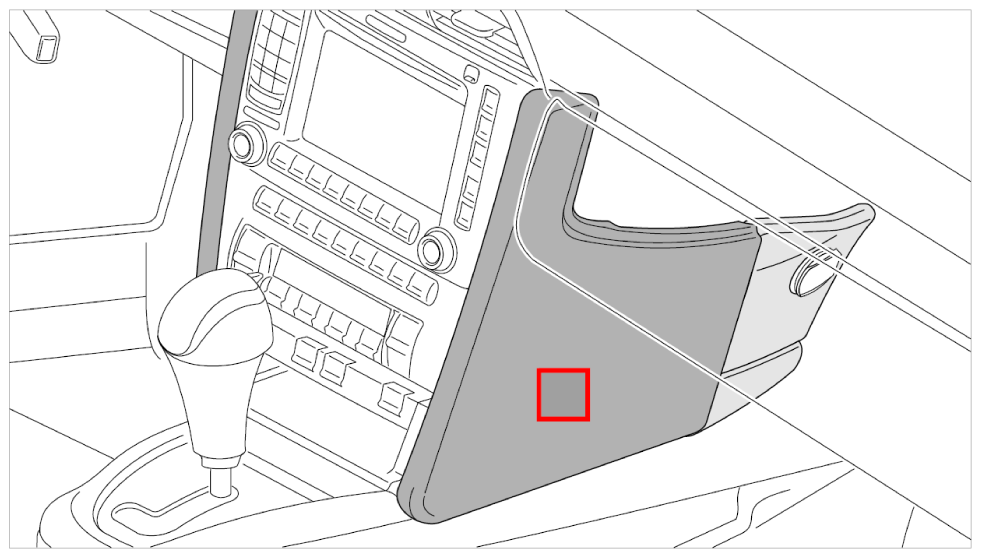

Fig 1: Identifying Center Console Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position cover for center console -2- and screw down using the fastening screws -1- . Tightening torque → Tightening torque: 1.5 ftlb.+/-0.15 ftlb. .

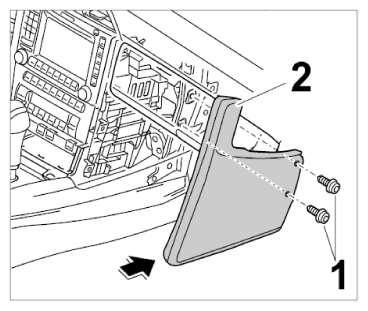

Fig 2: Installing Center Console Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
