Installing Footwell Outlet Vent Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

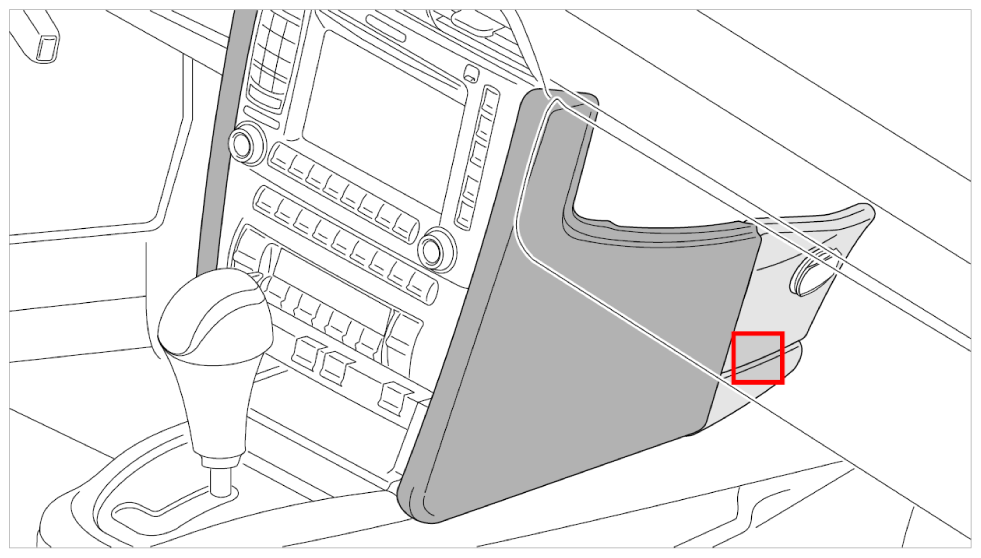

Fig 1: Identifying Footwell Outlet Vent Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only passenger's side.

Push electric connector onto socket -arrow- until connector is felt to engage.

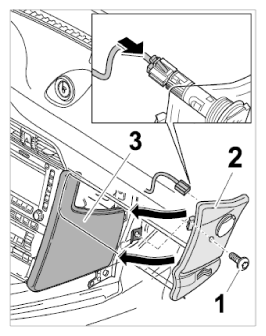

Fig 2: Installing Footwell Outlet Vent Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert footwell outlet vent cover -2- into center console cover -3- and screw down the fastening screw -1- . Tightening torque → Tightening torque: 7.5 ftlb.
