Removing Lid For Glove Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

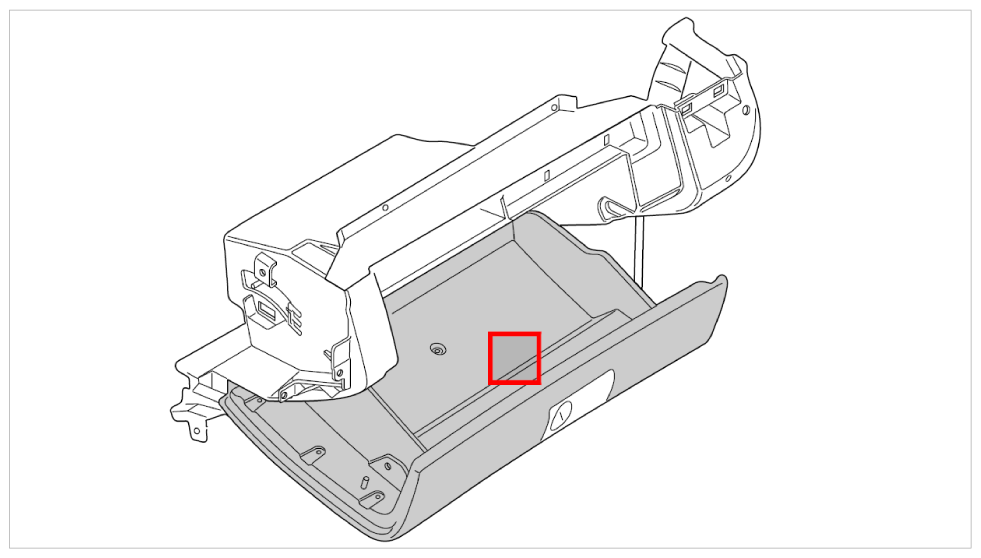

Fig 1: Identifying Glove Compartment Lid Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open the glove compartment.
Press shock absorber for glove compartment -1- carefully out of the fastening tab -2- .

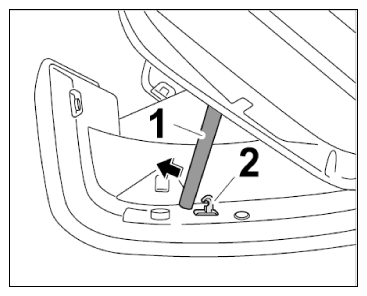

Fig 2: Pressing Out Shock Absorber For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn stop -1- 45° in -direction of arrow- and remove it.

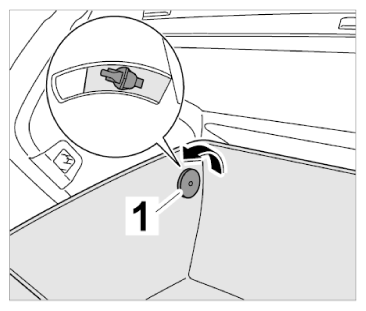

Fig 3: Removing Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drive out pin rod -3- , remove washer -4- and then detach the lid -1- from the glove compartment -2- (-direction of arrow- ).

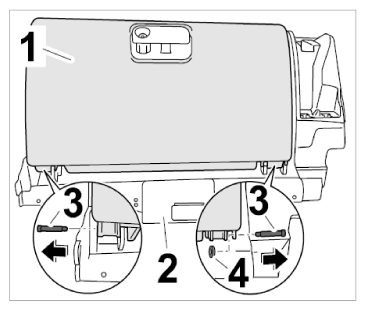

Fig 4: Removing Lid For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
