Installing Lid For Glove Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

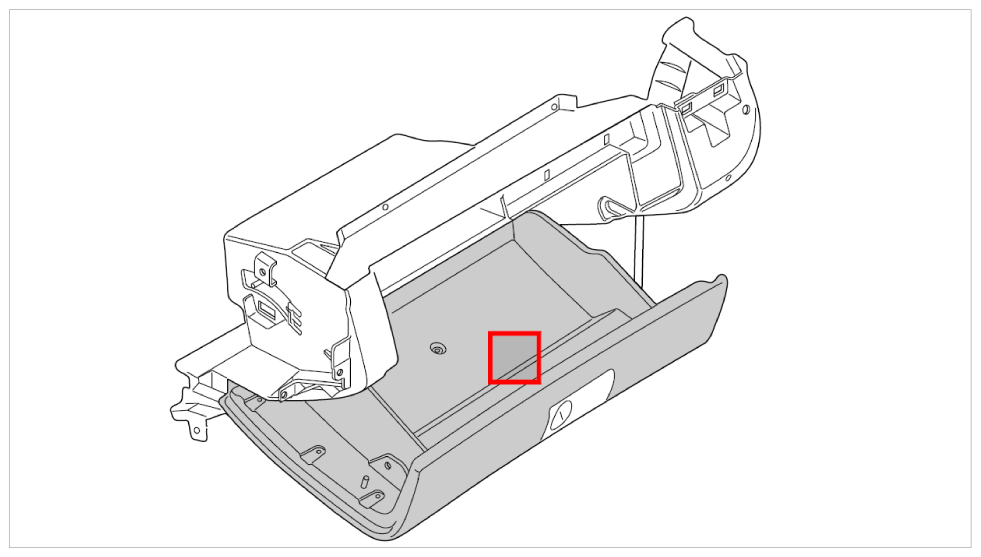

Fig 1: Identifying Glove Compartment Lid Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

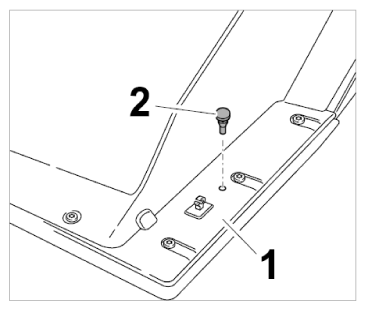

Check rubber stops to the left and right -2- before installing the glove compartment lid -1- and replace them if necessary.

Fig 2: Checking Rubber Stops
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

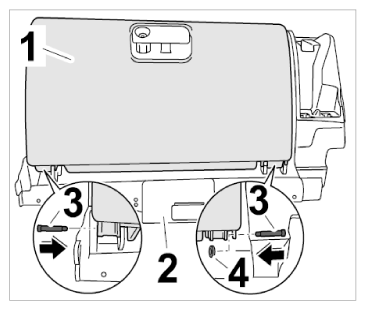

Position lid -1- and washer -4- on the glove compartment -2- and press in the pin rods -3- (-arrows- ).

Fig 3: Installing Lid For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

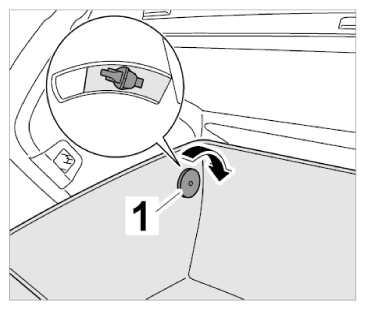

Close the glove compartment slightly, position stop -1- on the lid and turn 45° in -direction of arrow- .

Fig 4: Installing Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

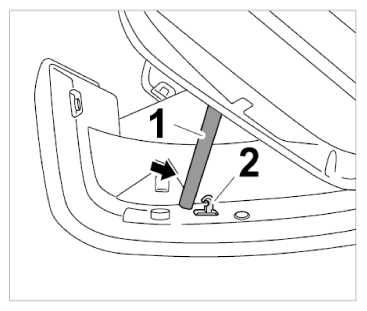

Press shock absorber for glove compartment -1- into the fastening tab -2- .

Fig 5: Pressing In Shock Absorber For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close glove compartment.
