Removing Support For Glove Compartment Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

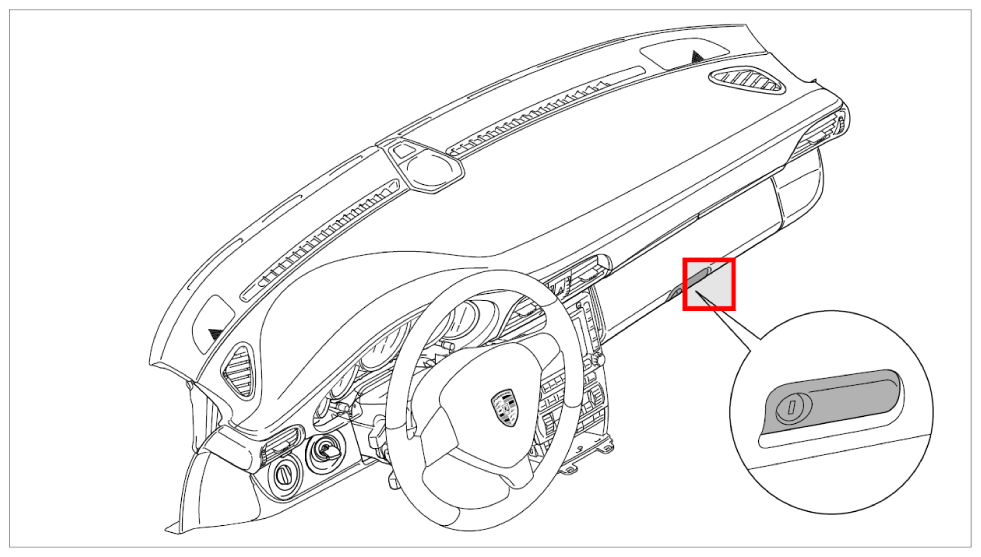

Fig 1: Identifying Glove Compartment Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

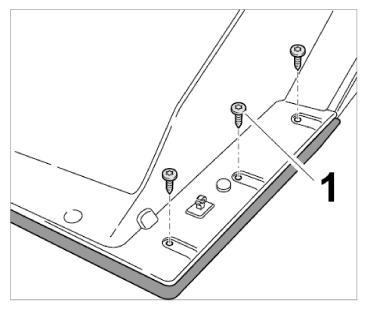

Unscrew fastening screws at the side -1- .

Fig 2: Identifying Support For Glove Compartment Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws at the front -1- and remove support for glove compartment lid -2- .

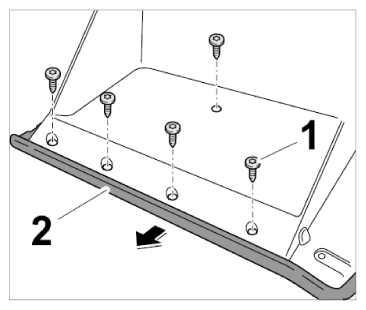

Fig 3: Removing Support For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
