Installing Glove Compartment Lock: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

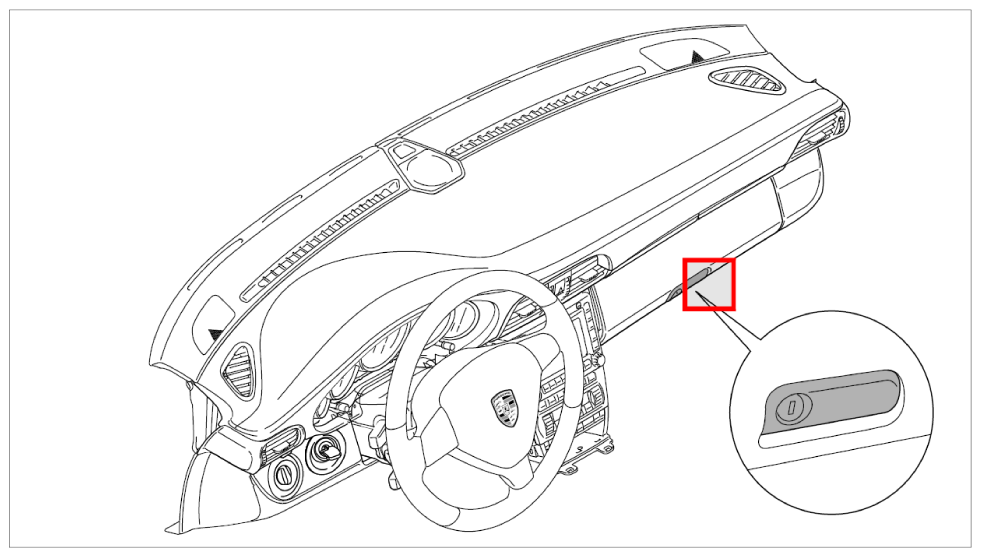

Fig 1: Identifying Glove Compartment Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position the handle -3- with the glove compartment lock -2- in the support for the glove compartment lid -4- (-arrow- ) and secure in position with the fastening screws -1- .

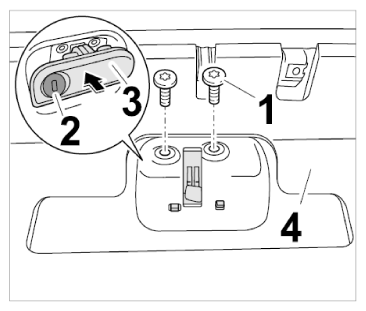

Fig 2: Installing Glove Compartment Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
