Installing Support For Glove Compartment Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

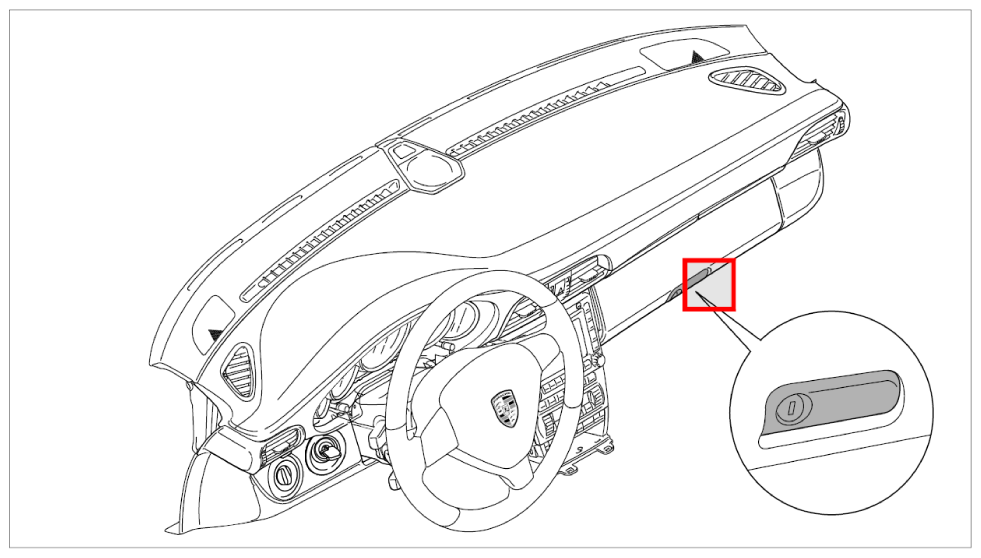

Fig 1: Identifying Glove Compartment Lock Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

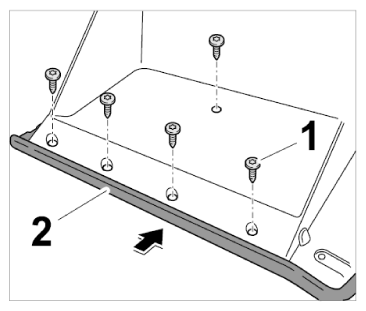

Position support for glove compartment lid -2- on the glove compartment lid -arrow- and screw in the fastening screws at the front -1- .

Fig 2: Installing Support For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

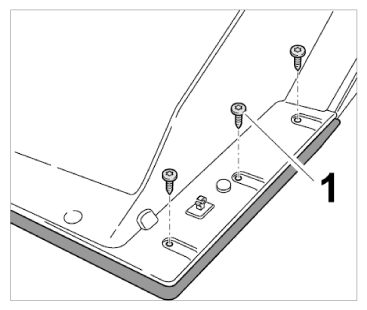

Screw in fastening screws at the side -1- .

Fig 3: Securing Support For Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
