Removing Control Unit For Telephone

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

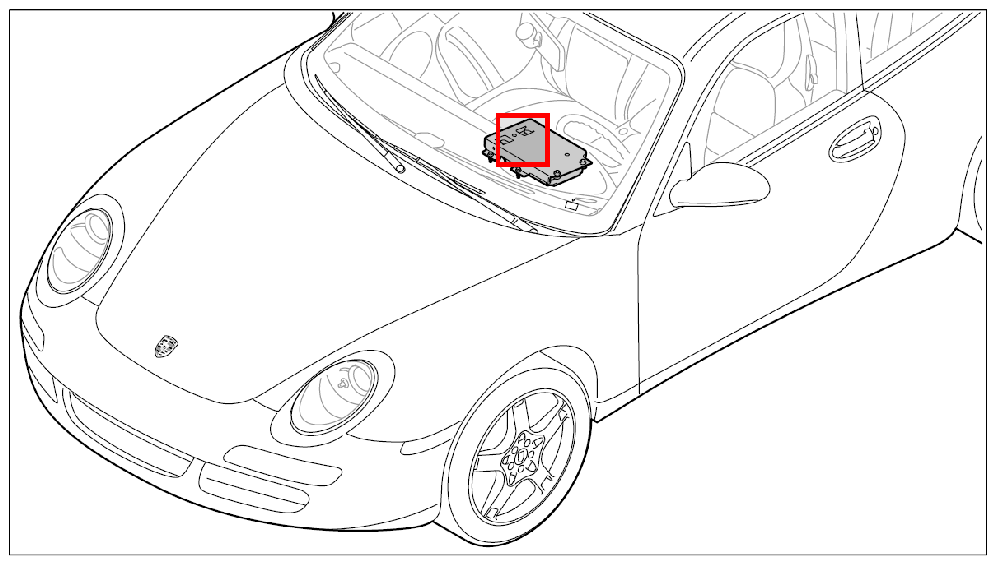

Fig 1: Identifying Control Unit For Telephone Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the two fastening screws -1- and rotate the cover and telephone control unit by 180°.

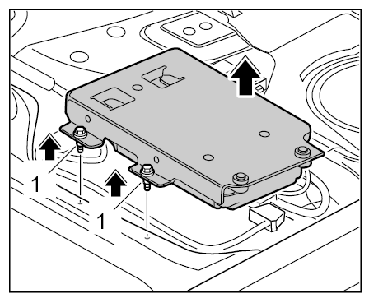

Fig 2: Removing Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Press latch on the electrical plug -A- , open the locking lever -a- , and remove plug.
Press latch on the electrical plug -B- for optical waveguide and remove plug.

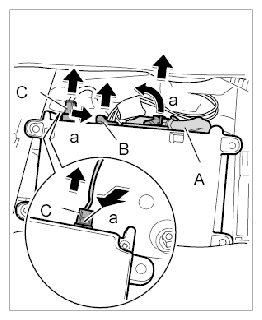

Fig 3: Removing Electric Plug Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo both fastening screws -2- on the telephone control unit and pull the control unit from the cover.

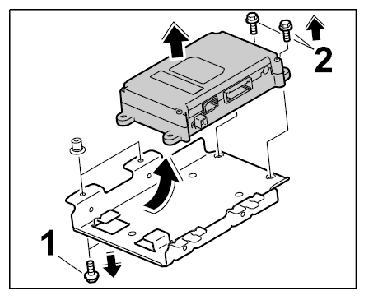

Fig 4: Removing Control Unit From Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
