Variant 2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the two fastening screws -1-  and remove the mounting plate -2-  .

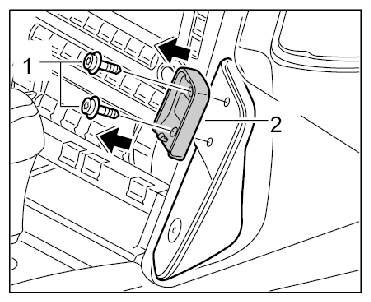

    Fig 1: Removing Mounting Plate Fastening Screw
    G09830626Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully unclip the cover -3-  using a screwdriver.
  3. Unscrew the fastening screw -4-  and remove the carrier plate -5-  .

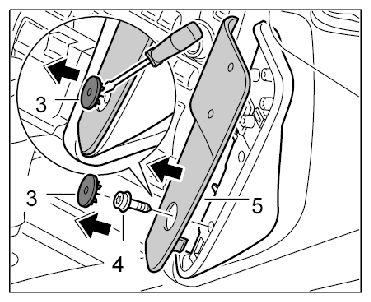

    4. Fig 2: Removing Carrier Plate Fastening Screw
    G09830627Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew the fastening screw -6-  and remove the trim panel -7-  .

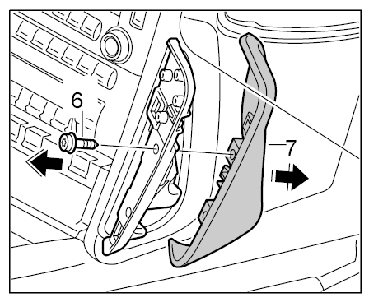

    Fig 3: Removing Trim Panel Fastening Screw
    G09830628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew the three fastening screws -8-  and remove the telephone console -9-  .

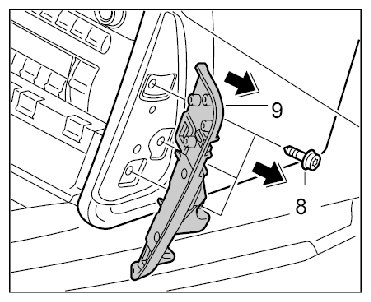

    Fig 4: Removing Fastening Screw And Telephone Console
    G09830629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
