Variant 1

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the two caps -2-  on the additional handset holder -1-  .
  2. Unscrew the two fastening screws -3-  for the additional handset holder and remove the holder -1-  .
  3. Disconnect electric connector on the mounting plate -a-  .

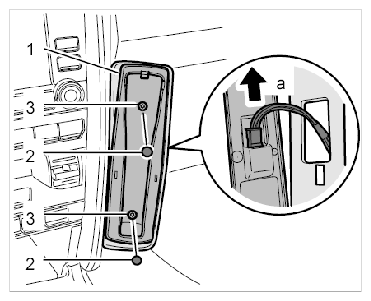

Fig 1: Removing Mounting Plate Connections
G09830625Courtesy of PORSCHE CARS NORTH AMERICA, INC.
