Variant 1

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. 3. Insert electric connector for the additional handset holder until the connector engages securely.
  2. 4. Position the additional handset holder and secure with the two fastening screws -1-  . → Tightening torque: 1.8 Nm (1.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

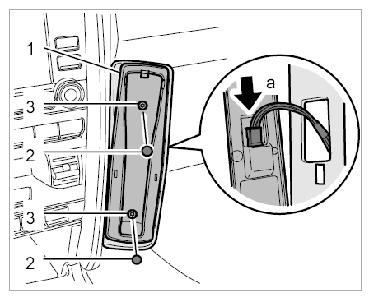

    3. Fig 1: Installing Mounting Plate Connections
    G09830632Courtesy of PORSCHE CARS NORTH AMERICA, INC.
