Installing Console For Telephone: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

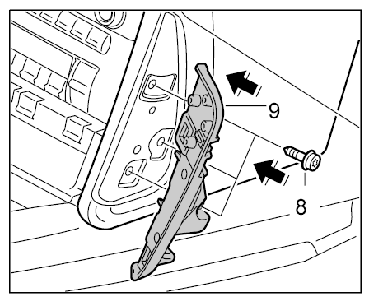

  1. Position the telephone console -9-  and secure it with the three fastening screws -8-  . → Tightening torque: 1.8 Nm (1.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
    Fig 1: Installing Telephone Console
    G09830630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

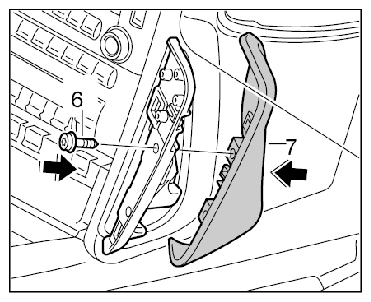

  2. Press the trim panel -7-  onto the console and secure with the fastening screw -6-  . → Tightening torque: 1.8 Nm (1.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
    Fig 2: Installing Trim Panel Fastening Screw
    G09830631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Different holders for mobile phones or additional handsets are used in the various countries.
