Removing Console For Telephone

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

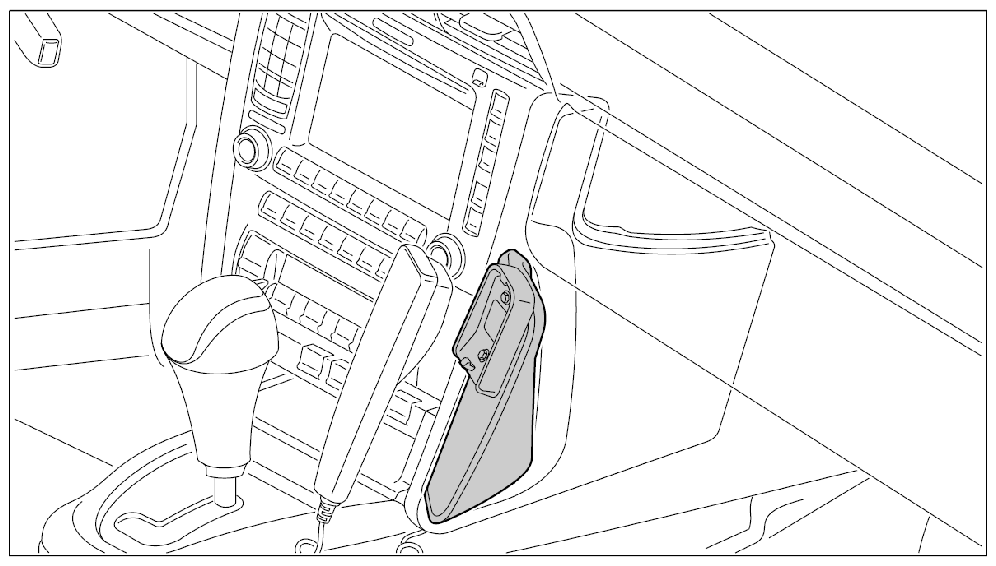

Fig 1: Identifying Console For Telephone Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

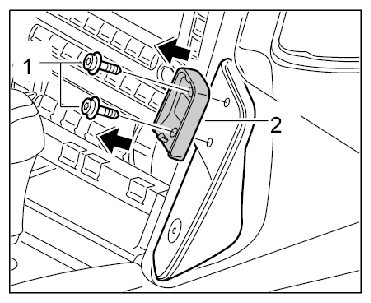

Unscrew the two fastening screws -1- and remove the mounting plate -2- .

Fig 2: Removing Mounting Plate Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

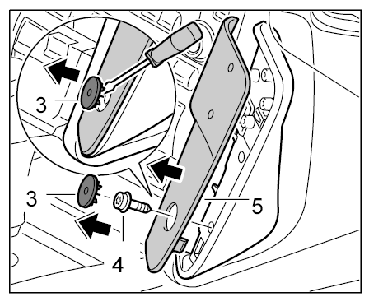

Carefully unclip the cover -3- with a screwdriver.
Unscrew the fastening screw -4- and remove the carrier -5- .

Fig 3: Removing Mounting Plate Fastening Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

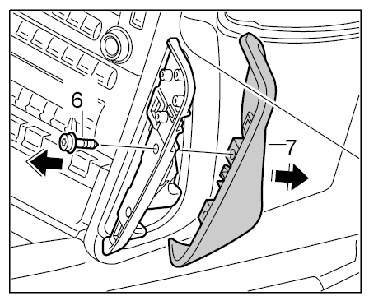

Unscrew the fastening screw -6- and remove the trim -7- .

Fig 4: Removing Trim Panel Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

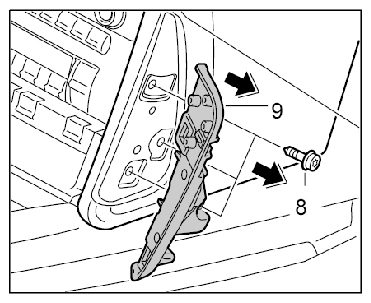

Unscrew the three fastening screws -8- and remove console for the telephone -9- .

Fig 5: Removing Fastening Screw And Telephone Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
