Installing Console For Telephone

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

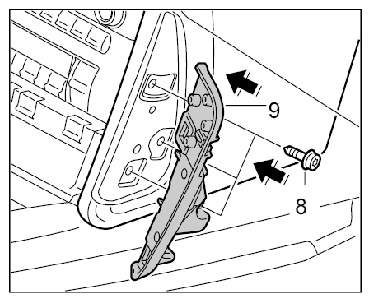

Position console for telephone -9- and screw down with the three fastening screws -8- . → Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

Fig 1: Installing Telephone Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

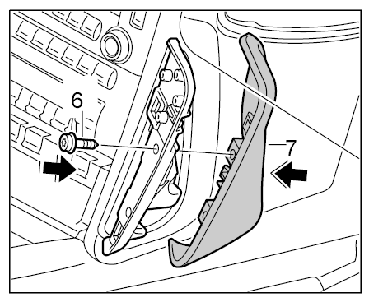

Press trim -7- on the console and screw down with the fastening screw -6- . → Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

Fig 2: Installing Trim Panel Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

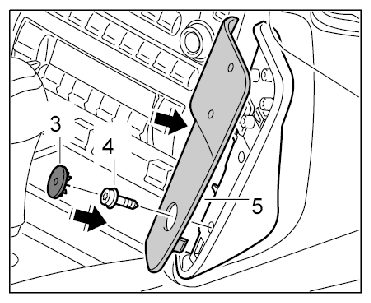

Press carrier -5- on the console and screw down with the fastening screw -4- . → Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

Fig 3: Installing Carrier Plate Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the cover -4- and clip it into place.

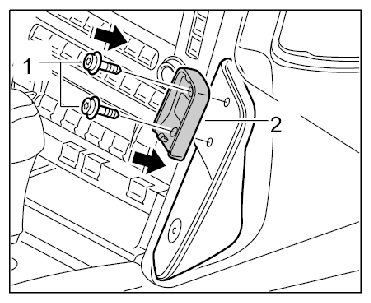

Secure the mounting plate with the fastening screws -1- . → Tightening torque: 1.5 ftlb.+/-0.2 ftlb.

Fig 4: Installing Mounting Plate Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place the handset in the bracket.
