Removing Antenna Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

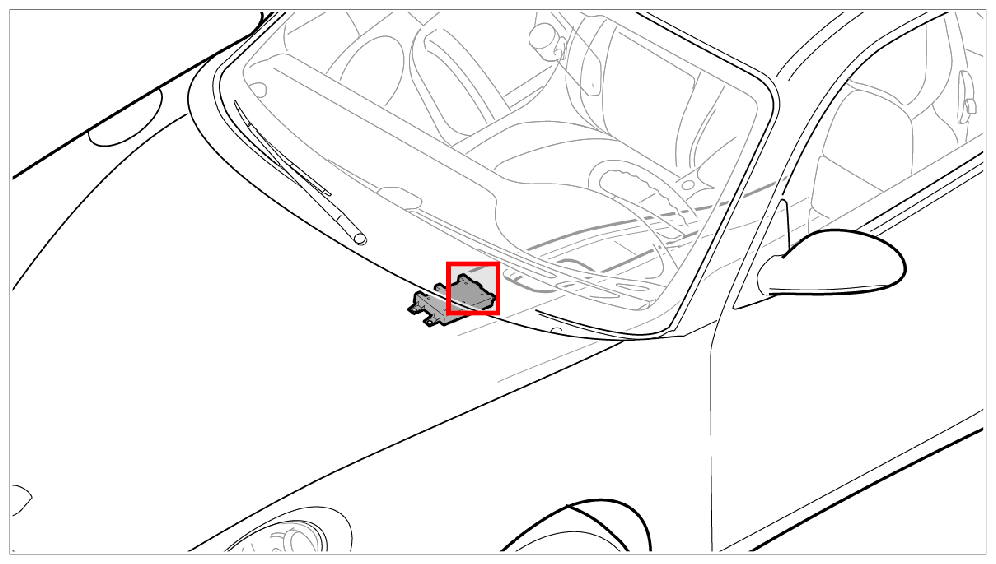

Fig 1: Identifying Antenna Control Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove ignition key and switch off audio system.

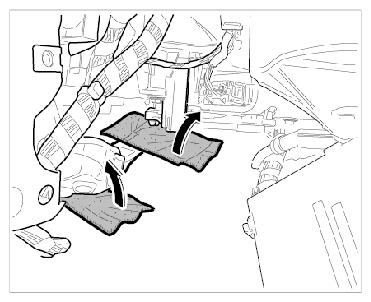

Undo the velcro strip on the carpet underneath the center console.

Fig 2: Removing Velcro Strip On Carpet
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

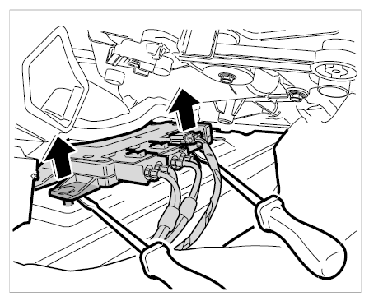

Push a screwdriver under the control unit and lever it up at the front and rear.

Fig 3: Removing Control Unit Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

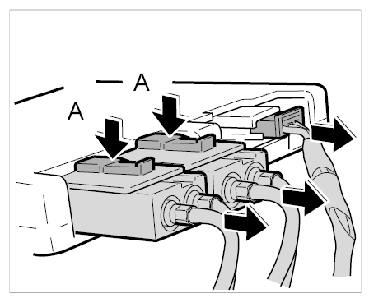

Release the electrical connectors -A- and pull them away from the antenna control unit.

Fig 4: Removing Electrical Plug Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take out the control unit.
