Installing Antenna Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

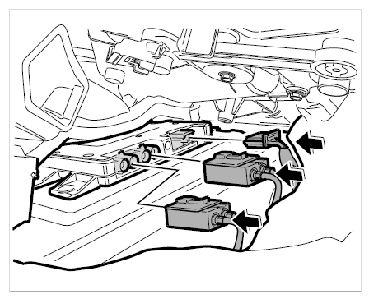

Press electrical connectors onto control module until they are felt to engage.

Fig 1: Installing Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

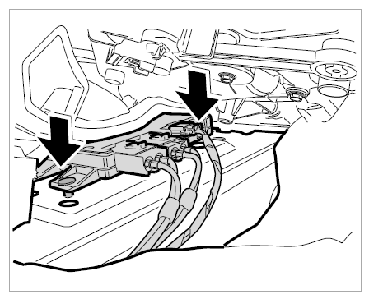

Position control unit on body and secure it with retaining clips.

Fig 2: Installing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Draw the carpeting beneath the center console together and secure with the velcro fastener.
