Installing Sensor For Parkassist
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
If one or more sensors must be replaced or repainted:
- Follow the painting specifications in the Paint Manual.
Information
If one or more sensors must be replaced or repainted:
- Follow the painting specifications in the Paint Manual.

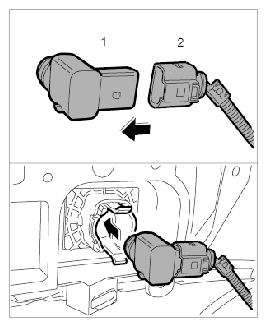

- Slide the connector -2- onto the sensor -1- until it engages securely.
- Insert sensor into mounting point of bumper until the retaining tabs on the sensor engage.
