Removing Control Unit For Parkassist (PDC)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

If the ParkAssist control unit has to be replaced, the values from the control unit should first be read out using the PIWIS Tester 9718 . → Programming Control Unit For Parkassist

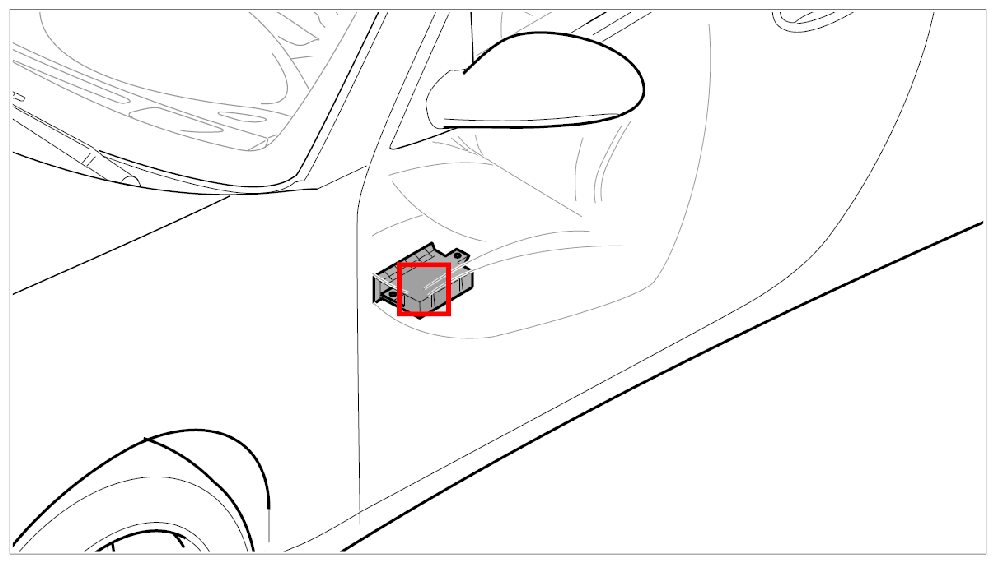

Fig 1: Identifying Control Unit For Park Assist (PDC) Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

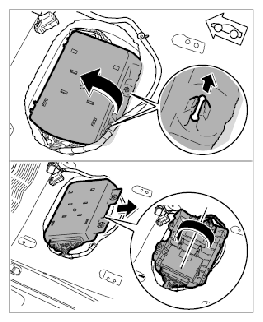

Unclip control unit holder from back to front in direction of travel, disengage it and turn the holder 180°.

Fig 2: Turning Control Unit Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the two side locking lugs -1- for the PDC (Parking Distance Control) control unit apart and lift the control unit up out of the holder.

Fig 3: Removing Control Unit Out Of Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

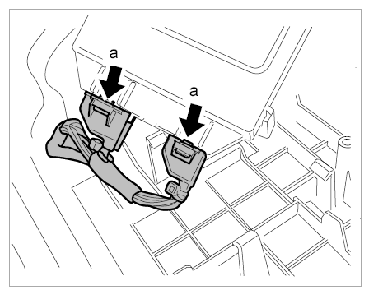

Release electric connectors -a- and pull them off the PDC control unit.

Fig 4: Removing Electric Plug Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
