Installing Control Module For Parkassist

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the ParkAssist control unit has to be replaced, the values from the control unit should first be read out using the PIWIS Tester 9718 . → Programming Control Unit For Parkassist

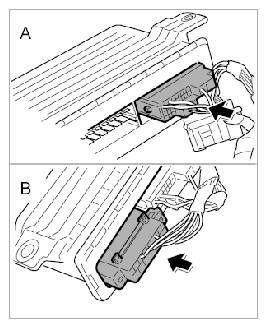

Press electrical connectors -A, B- into control unit until they are felt to engage.

Fig 1: Installing Control Unit Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

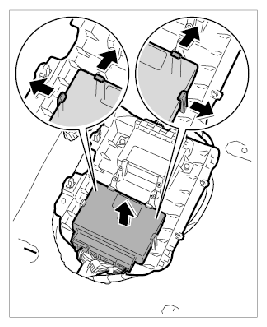

Position control unit on its holder, press it in and clip it into the holder.

Fig 2: Installing Control Unit Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

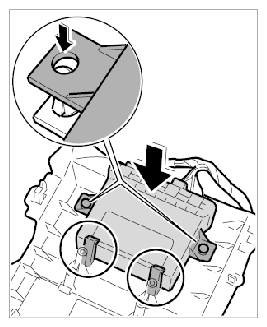

Turn the bracket by 180° into the direction of travel, attach it at the front and clip it into place at the rear.

Fig 3: Identifying Control Unit Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
