Removing Control Unit For Steering Wheel Electronics

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The control unit for steering wheel electronics is bolted to the steering-column switch.

Before the ground strap of the battery is disconnected, the data in the control unit for steering wheel electronics must be read out using the Porsche System Tester.

Information

Ensure that the arrow -A- of the rotor is positioned between the markings -B- of the arrows -C- of the airbag contact unit and that the latch -D- is engaged.

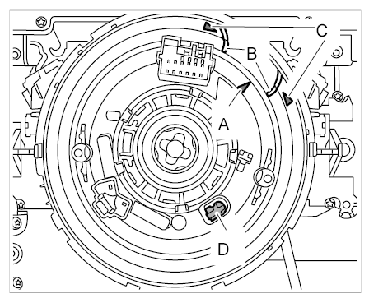

Fig 1: Identifying Rotor Arrow Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove contact unit.
1. 1.1. Carefully lift up the three retaining tabs and remove airbag contact unit.

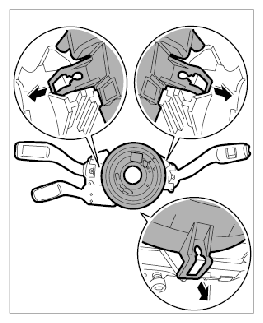

  Fig 2: Removing Contact Unit Retaining Tabs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws for steering wheel electronics control unit.
1. 2.1. Unscrew the five fastening screws.

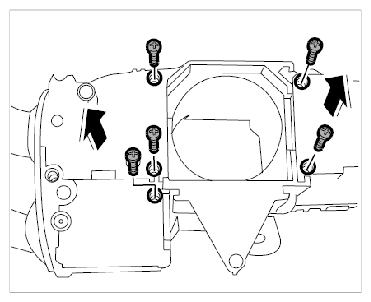

  Fig 3: Removing Steering Wheel Electronics Control Unit Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push out the line holder.
1. 3.1. Push line holder down and out of the steering-column switch.

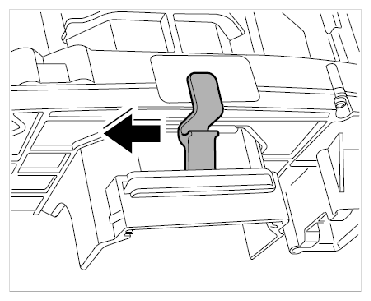

  Fig 4: Removing Line Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove control unit for steering wheel electronics.
1. 4.1. Turn steering column switch round and remove control unit for steering wheel electronics.

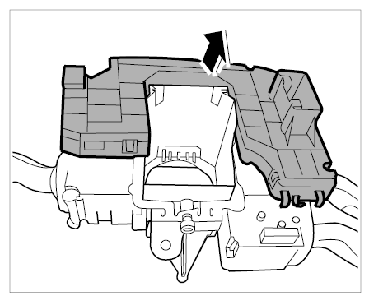

  Fig 5: Removing Steering Wheel Electronics Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
