Removing Multi-Function Remote Control

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

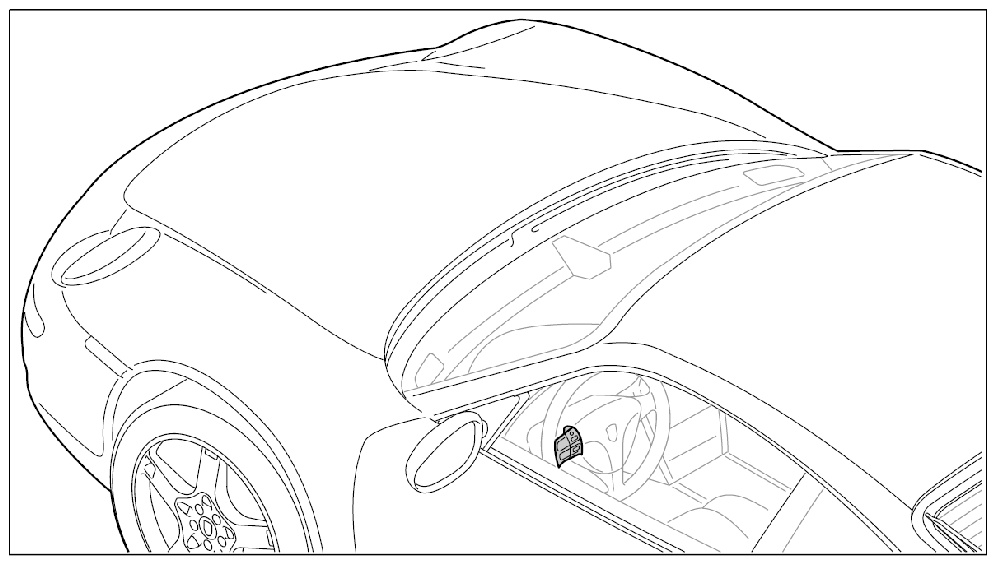

Fig 1: Identifying Steering Wheel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the fastening screws -2- and washers -3- for the remote control and carefully lever the remote control out using a screwdriver.

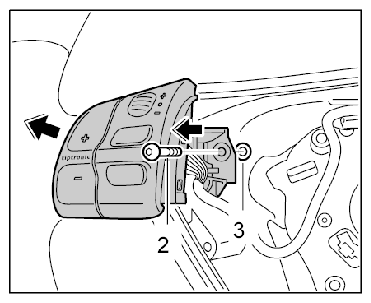

Fig 2: Removing Remote Control Fastening Screws And Washers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the electric plug connection on the remote control -A- and disconnect it.

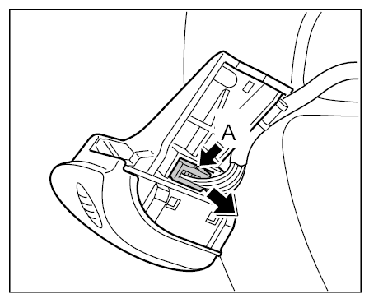

Fig 3: Removing Remote Control Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove remote control.
