Installing Multi-Function Remote Control

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

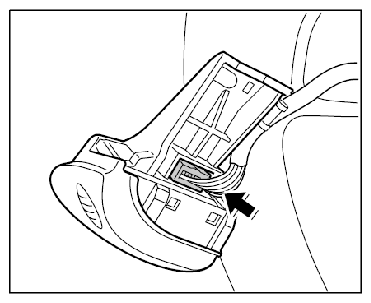

Insert electric connector into the remote control until it clicks into place.

Fig 1: Installing Remote Control Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

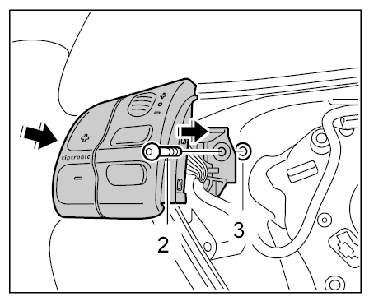

Insert remote control into the steering wheel, position washers -3- and screw down with the fastening screw -2- .

Fig 2: Installing Remote Control Fastening Screws And Washers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
