Removing CD Changer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew the 6 fastening screws -1- and pull the CD changer out of its retaining bracket.

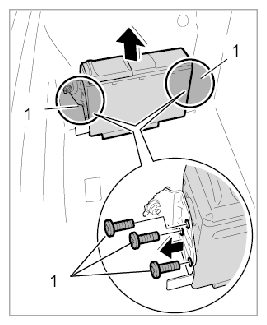

Fig 1: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Release the electric plug connections and unplug them.

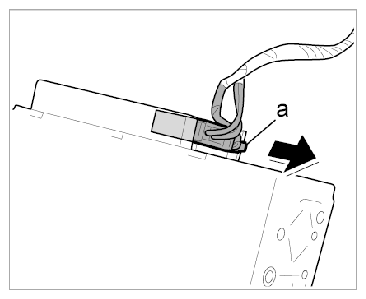

Fig 2: Removing Electrical Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the three fastening nuts -2- and take off both retaining frames.

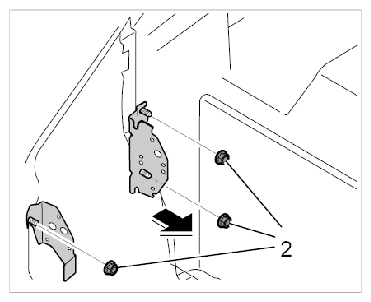

Fig 3: Removing Retaining Frame Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
