Preliminary Work - Removing CD Changer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully push a screwdriver between CD changer trim panel and carpet.

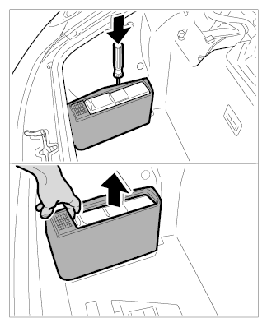

    Fig 1: Removing CD Changer Trim Panel
    G09830570Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Reach into the gap between carpet and CD changer trim panel and lift the trim panel up and off.
