Removing Microphone For Telephone

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the two fastening screws -1-  for the steering column trim.

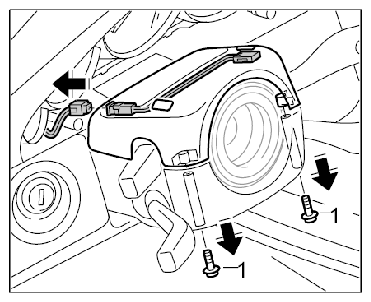

    Fig 1: Removing Steering Column Trim Fastening Screw
    G09830567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect the electrical plug and remove the upper part of the steering column trim.
  3. Unclip the microphone and the electrical connector from the steering column trim -A-  .

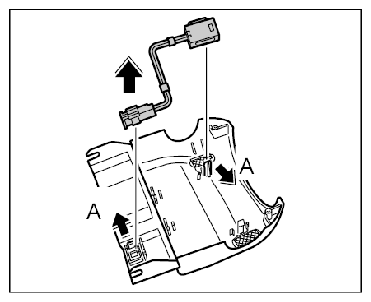

    Fig 2: Removing Microphone And Electric Plug Connector
    G09830568Courtesy of PORSCHE CARS NORTH AMERICA, INC.
