Installing Microphone For Telephone

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the wiring harness with the microphone into the steering column trim.

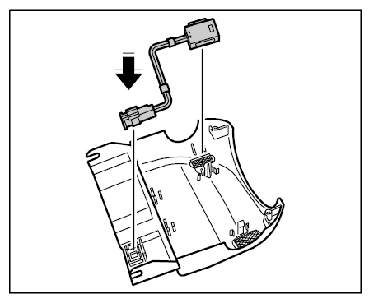

    Fig 1: Installing Microphone And Electric Plug Connector
    G09830569Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position the microphone and connector and clip them into the trim.
  3. Position the upper part of the steering column trim back over the steering column, plug in the connector and screw the top part of the trim down tight with fastening screws.
