Removing Mobile Communication Antenna

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

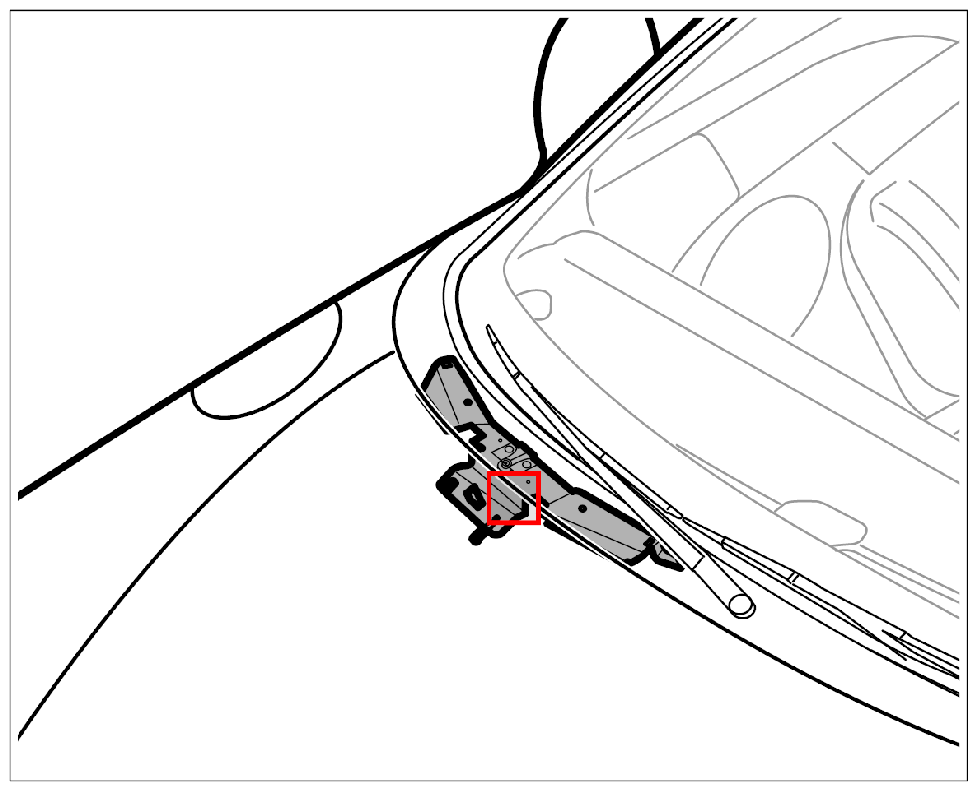

Fig 1: Identifying Mobile Communication Antenna Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Before removing the cowl panel cover, unclip the locking mechanism for the antenna line, disconnect antenna line and loosen the fastening screws -1- .

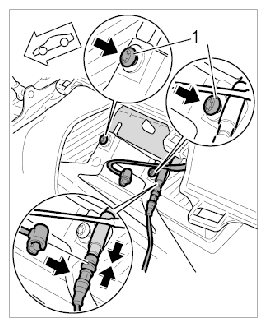

Fig 2: Removing Antenna Line And Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the cowl panel cover around and unscrew the two fastening screws -3- .
Unclip mobile communication antenna from the cowl panel at two places -2- .

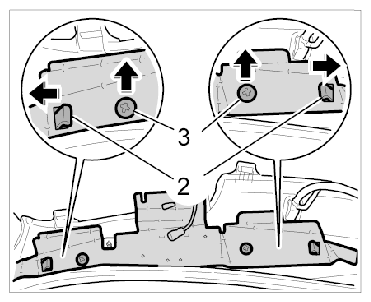

Fig 3: Removing Mobile Communication Antenna Mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
