Removing Rear Speakers

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip the cover for the speaker with the help of a plastic spatula -1-  .

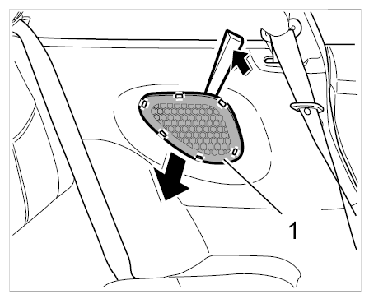

    Fig 1: Removing Speaker Cover
    G09830548Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Undo fastening screws -2-  .

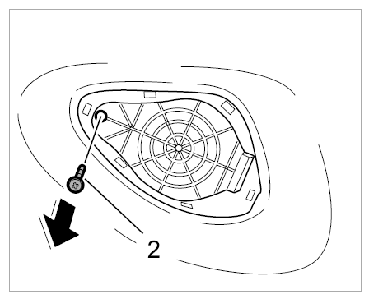

    Fig 2: Removing Fastening Screw
    G09830549Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tip the loudspeaker -3-  forwards and pull it out of its bracket.

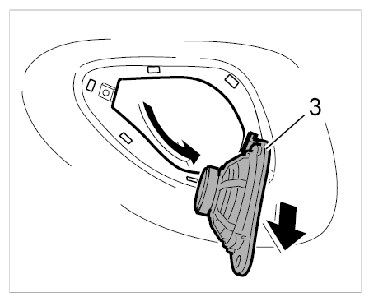

    Fig 3: Removing Loudspeaker Out Of Bracket
    G09830550Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    NOTE: Voltage peaks
    • Risk of damage to load or to the control unit

    → Remove the ignition key and switch off load before disconnecting or removing load.

  4. Unplug the electrical connector -4-  from the speaker.

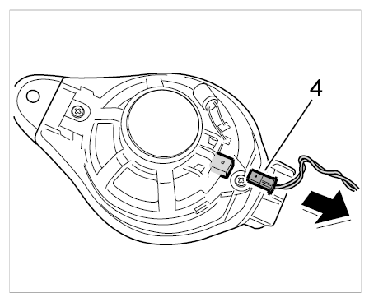

    Fig 4: Removing Electric Plug Connector
    G09830551Courtesy of PORSCHE CARS NORTH AMERICA, INC.
