Installing Rear Speakers

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

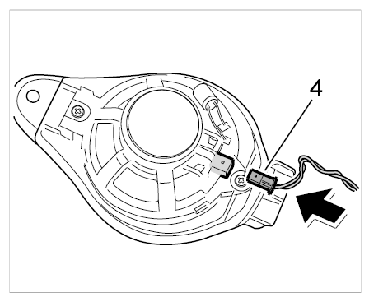

  1. Unplug the electrical connector -4-  from the speaker.
    Fig 1: Installing Electric Plug Connector
    G09830552Courtesy of PORSCHE CARS NORTH AMERICA, INC.

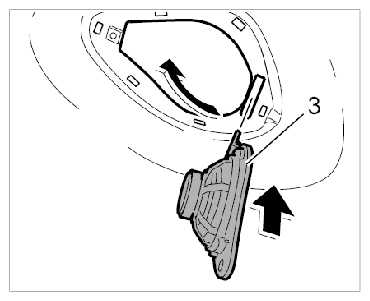

  2. Insert the speaker -3-  into the panelling and tip it backwards.
    Fig 2: Installing Loudspeaker Into Bracket
    G09830553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

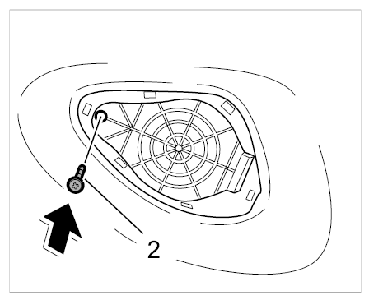

  3. Secure the speaker with the fastening screw -2-  .
    Fig 3: Installing Fastening Screw
    G09830554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

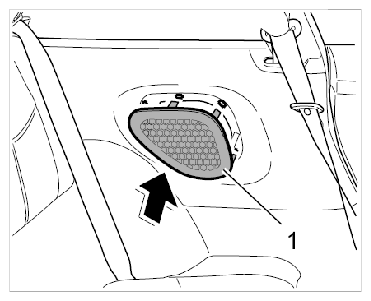

  4. Position the cover -1-  and clip it into the panel.
    Fig 4: Installing Speaker Cover
    G09830555Courtesy of PORSCHE CARS NORTH AMERICA, INC.
