Removing Central Speaker From Dashboard

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover for the center speaker with a plastic spatula and pull it out upwards.

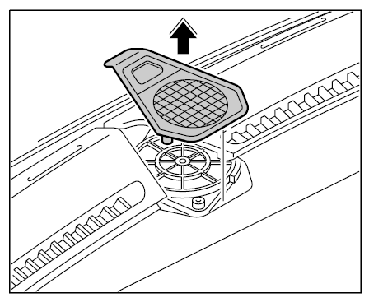

    Fig 1: Removing Centre Speaker Cover
    G09830539Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew both fastening screws -1-  for the center speaker.

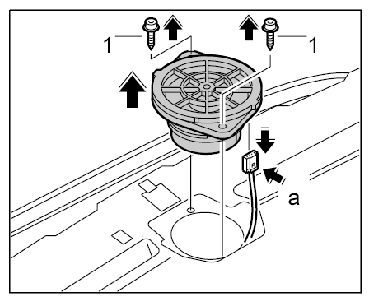

    Fig 2: Removing Centre Speaker Fastening Screw
    G09830540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unplug electrical plug connection.
