Installing The Centre Speaker Into The Instrument Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the electrical plug connection to the speaker.
  2. Position the speaker on the instrument panel and screw it down tight with fastening screws -1-  . → 4.2: 3.0 ftlb.+/-0.5 ftlb.

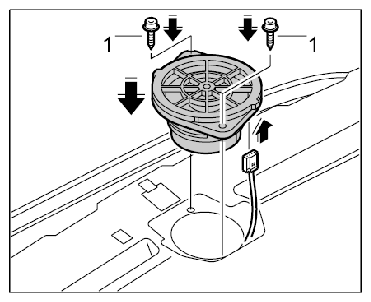

    3. Fig 1: Installing Centre Speaker Fastening Screw
    G09830542Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position cover for center speaker and clip into dashboard.

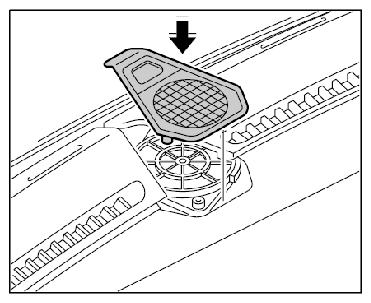

    Fig 2: Installing Centre Speaker Cover
    G09830543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
