Installing SDARS Antenna

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

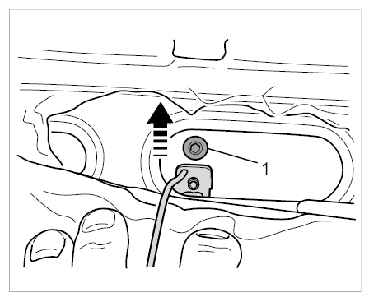

Slide in antenna and line, position them and secure with the fastening screw -1- .

Fig 1: Installing Antenna Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

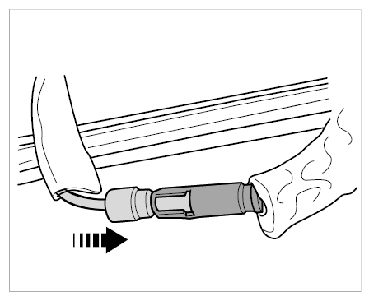

Push electric plug connection together until it engages securely.

Fig 2: Installing Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
