Removing Rod Antenna

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

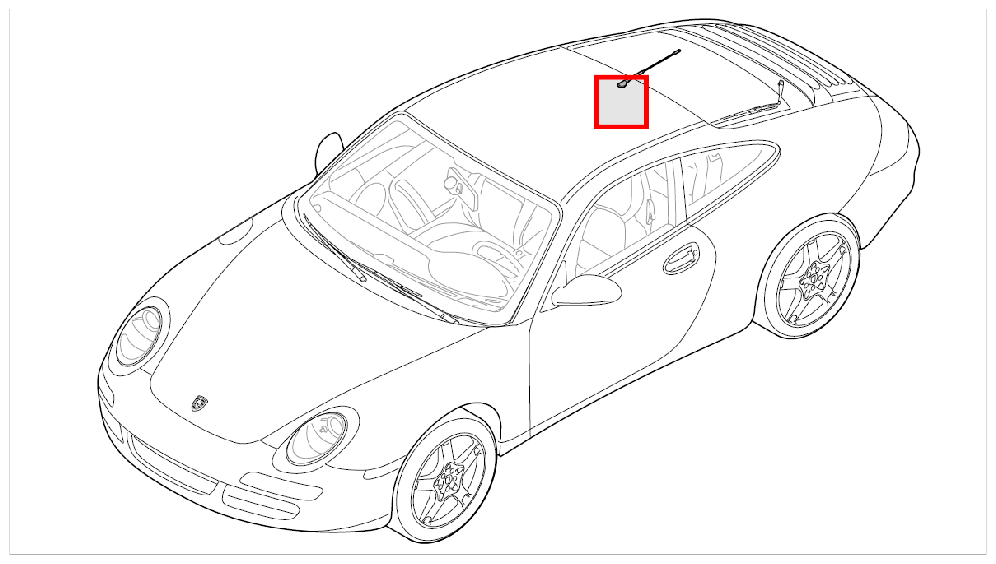

Fig 1: Identifying Rod Antenna Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

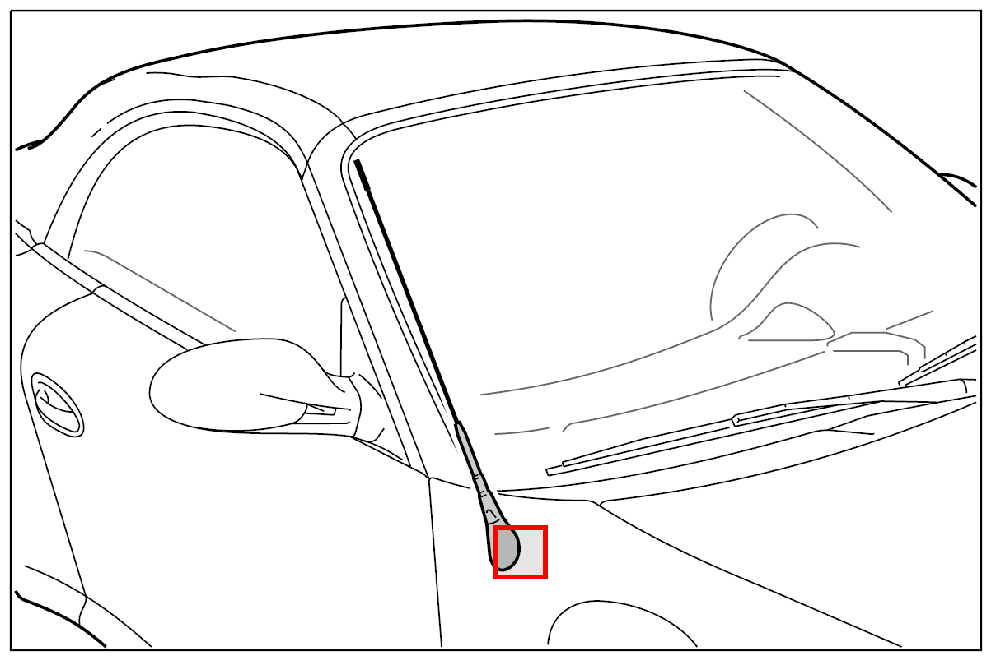

Fig 2: Identifying Rod Antenna Location (911 Cabriolet)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Remove ignition key and switch off the audio system.
Unscrew antenna rod on the antenna base cover.
Unscrew fastening nut -B- and remove antenna base cover -A- .

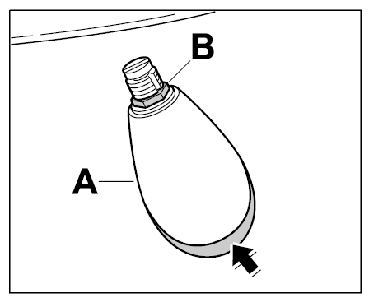

Fig 3: Identifying Antenna Base Cover And Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove -arrow- seal.
Take out antenna base downward and pull off both connectors -A and B- from the antenna base.

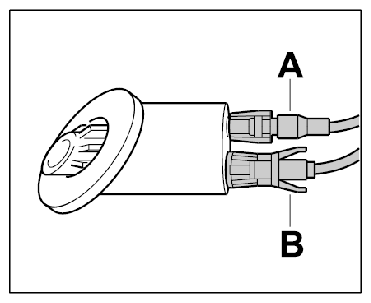

Fig 4: Identifying Antenna Base Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
