Installing Rod Antenna

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

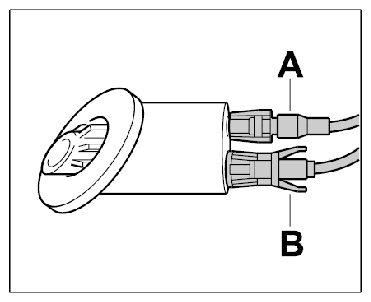

Push both connectors -A and B- onto the antenna base until they are felt to engage.

Fig 1: Identifying Antenna Base Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

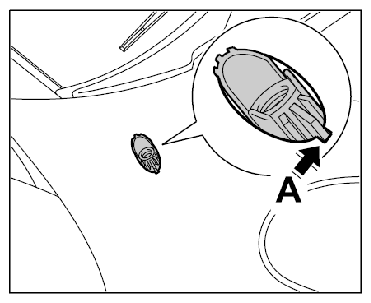

Insert antenna base in the cut-out from below. The bar of the antenna base must be inserted in the guide nut -A- while doing so.

Fig 2: Locating Antenna Base Guide Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

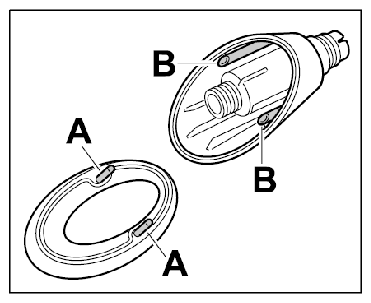

Insert seal with the locating pins -A- in the holes -B- on the antenna base cover.

Fig 3: Identifying Seal Locating Pins And Antenna Base Cover Hole
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The seal (arrow) must make contact all the way around on the antenna base cover.

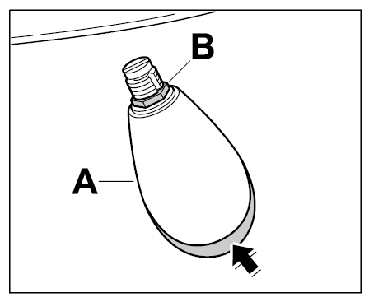

Position antenna base cover -A- and tighten the fastening nut -B- . → Tightening torque: 3 Nm (2 ftlb.)

Fig 4: Identifying Antenna Base Cover And Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in antenna rod hand-tight in the antenna base cover.
