Removing Subwoofer

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Switch ignition off, remove ignition key and switch off audio system.

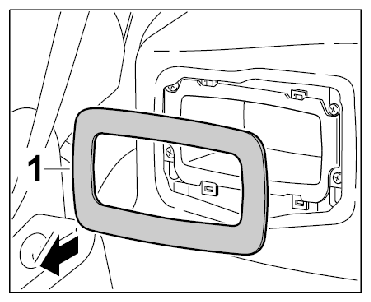

Remove trim -1- at left and right towards the front.

Fig 1: Removing Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

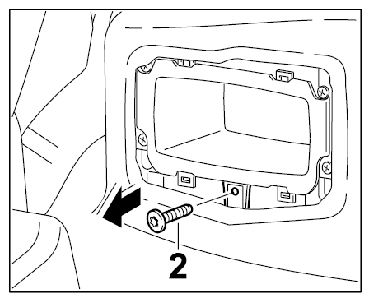

Unscrew fastening screw -2- left and right.

Fig 2: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

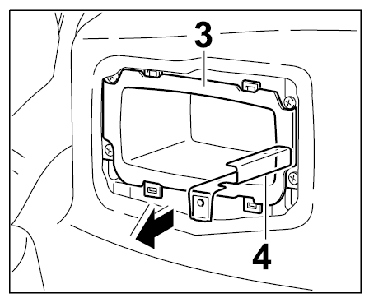

Pull the sound package -3- in -direction of arrow- out of the bracket -4- and fold over.

Fig 3: Removing Sound Package Out Of Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

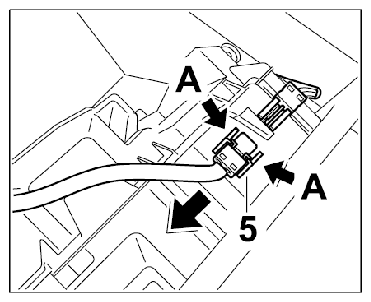

Press the electric connector together -5- and disconnect.

Fig 4: Removing Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
