Installing Antenna Leads

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Voltage peaks
  • Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

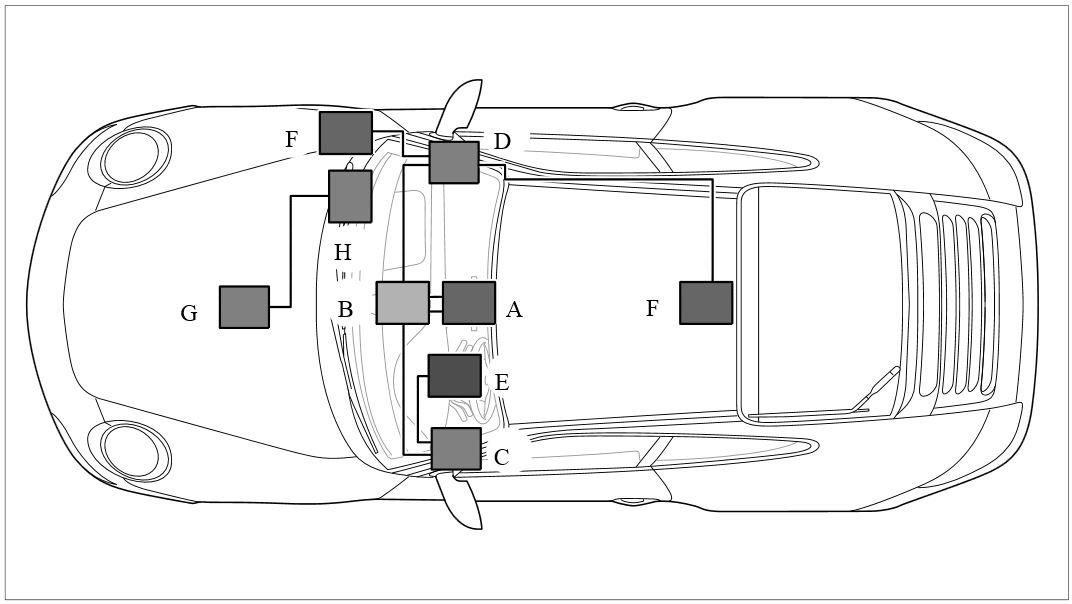

Fig 1: Identifying Antenna Lead Position
G09830514Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. PCM/radio
  2. Antenna control unit
  3. Antenna amplifier, left
  4. Antenna amplifier, right
  5. KESSY/PAS control unit
  6. Rod antenna
  7. Navigation unit
  8. GPS antenna

Information

  1. Release and pull off connectors -D and E-  on the damaged antenna lead on the affected components. The illustration shows the connectors for the PCM display and operator control unit as an example.

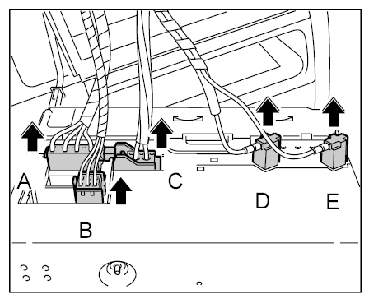

    Fig 2: Removing PCM Electric Plug Connector
    G09830515Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Cut off the connectors on the damaged antenna lead, then insulate it and tie it to the main wire harness.
  3. Route the new antenna lead along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.

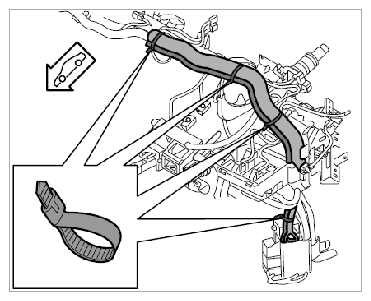

    Fig 3: Installing Antenna Lead To Main Wire Harness
    G09830516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect the connectors -D and E-  for the new antenna lead to the affected components until the connectors are felt to engage. The illustration shows the connectors for the PCM display and operator control unit as an example.

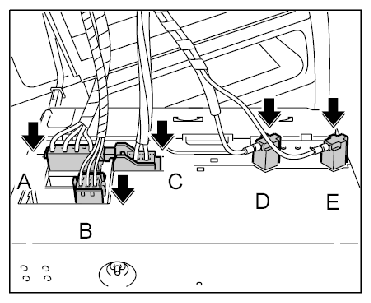

    Fig 4: Installing PCM Electric Plug Connector
