Replacing Buttons On "CD player" Car Radio (CDR 30)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Check that all buttons are seated securely. Replace loose buttons.
- Buttons have different coding (the coding can be checked on the underside of the buttons).
- Make sure that the buttons are placed at the correct position. Buttons in the repair kit packaging are arranged at the same position as on the car radio.
Information
To avoid scratching the dashboard, do not use pointed tools (screwdriver or similar tools).

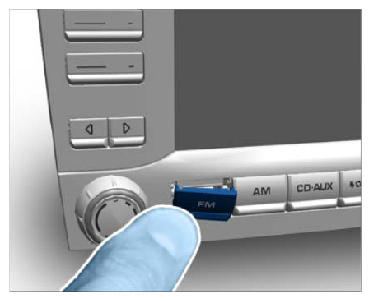

- Remove a button from the anchoring device by pressing on the lower corner → Removing buttons .
- Insert the lower side of a new button into the anchoring device and then clip it in at the top.
