Removing The Car Radio

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition and remove ignition key.

Loosen the side fastening screws a few turns.

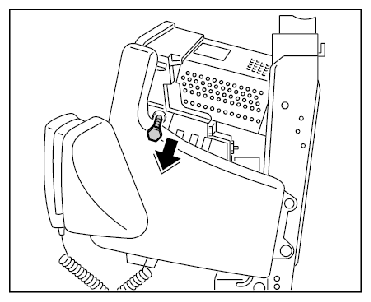

Fig 1: Removing Car Radio Side Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert an Allen key sideways into the screw connection of the radio latch hooks.
Close the latches (2 each side) with an Allen key -A- and carefully pull out the radio.
For reinstallation, open the latches with the Allen key -B- .
The number of plug connections will vary, depending on the I No. (CD changer, amplifier, etc.).

The variant without additional audio components (external Most control units) has a jumper (output to input) connected to the optical waveguide plug.

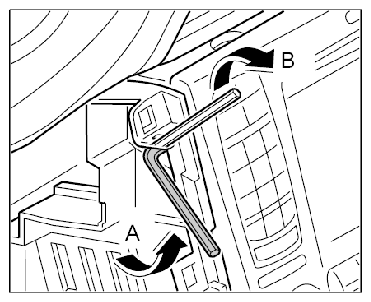

Fig 2: Installing Detents Using Allen Key
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock antenna plug -D, E- and remove.
Unlock and disconnect the electrical plug connections in the order -A, B, C- .

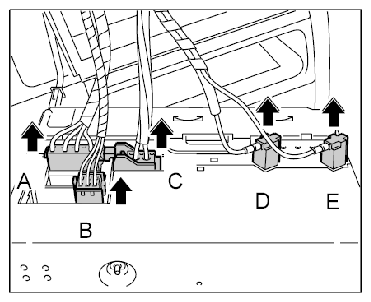

Fig 3: Removing Radio Electric Connector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
