Installing The Car Radio

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electric plug connections in the sequence -C, B, A- and the antenna amplifiers -D, E- so that the connectors engage securely.

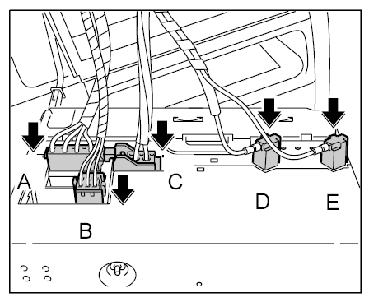

Fig 1: Installing Radio Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the locking tabs on the radio are sticking out. Open the locking mechanism with an Allen key if necessary.

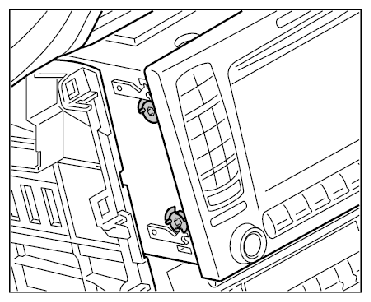

Fig 2: Identifying Radio Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before sliding the PCM/radio into the installation slot, make sure that the electric lines are not trapped by the PCM/radio or damaged.

After installation of a new PCM display and operator control unit/radio, the system must be activated using PIWIS Tester II 9818 . → Programming Display And Operator Control Unit (PCM 3.0)
Push the radio into the installation slot until the locking mechanisms engage on the radio housing.
Screw in the locking screw for the radio and tighten it.

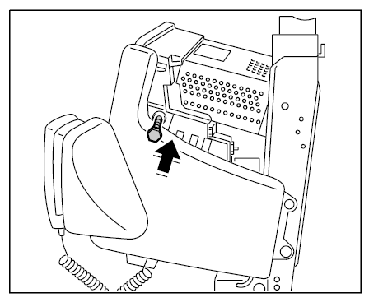

Fig 3: Installing Radio Side Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
