Removing Multimedia Interface

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

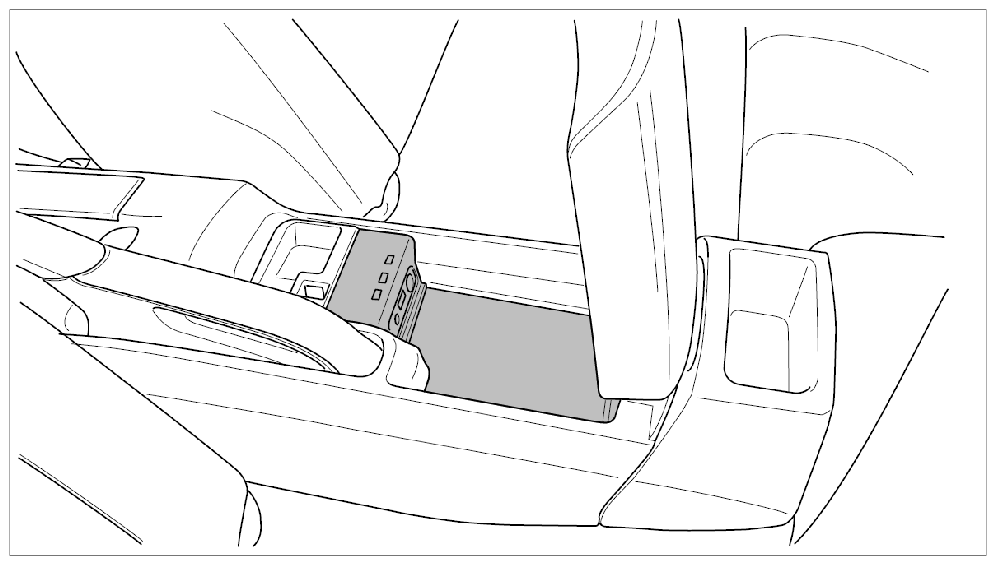

Fig 1: Identifying Multimedia Interface Position
G09830499Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open lid of center console storage tray.
  2. Lift up and remove rubber mat.
  3. Unscrew the three fastening screws -1-  for the cover -2-  .

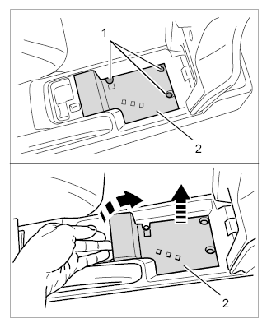

    Fig 2: Removing Cover Fastening Screws
    G09830500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Lift the cover -2-  at the front and pull it up.
  5. Lay the cover -2-  aside and lift the electric line -3-  out of the receptacle in the cover.

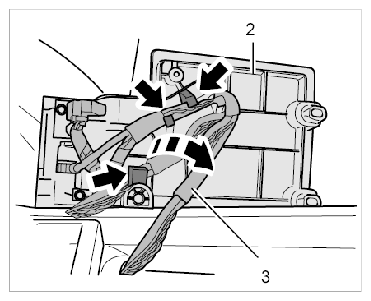

    Fig 3: Removing Electric Lines Out Of Cover
    G09830501Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Release the two electric plug connections -4-  and -5-  (-a-  ) and pull them off.

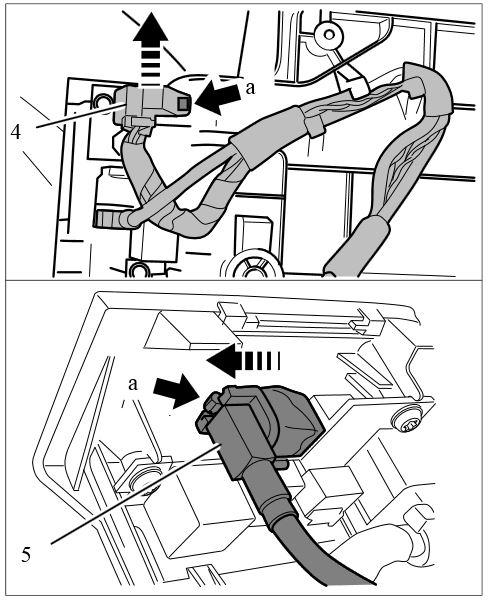

    Fig 4: Removing Electric Connector
    G09830502Courtesy of PORSCHE CARS NORTH AMERICA, INC.
