Installing Multimedia Interface

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

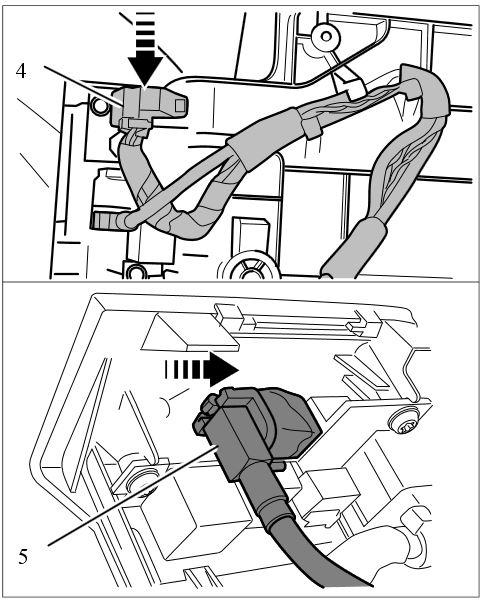

Plug in electric connectors -4- and -5- until they engage securely.

Fig 1: Installing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

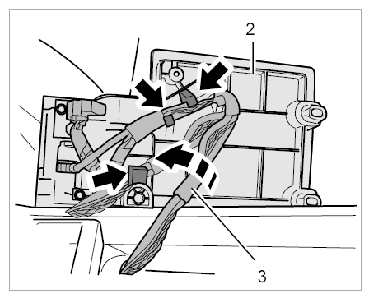

Insert electric line -3- into the receptacles in the cover -2- .

Fig 2: Installing Electric Line In Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

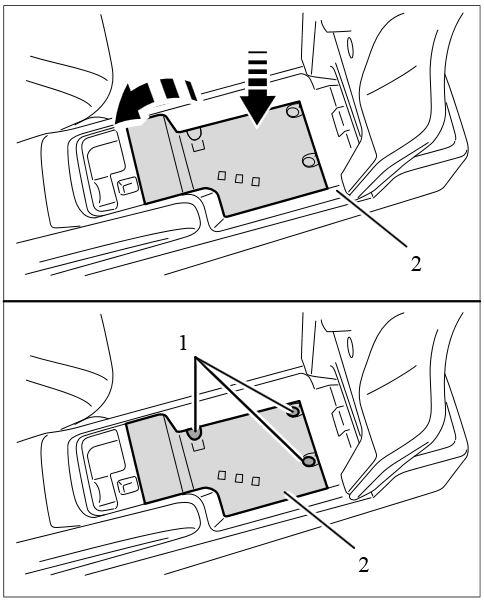

Fit the cover -2- and secure with the three fastening screws -1- .

Fig 3: Installing Cover Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit rubber mat for storage tray and close the lid.
