Removing TV Tuner

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the two electric connectors -a-  and unplug them from the TV tuner.

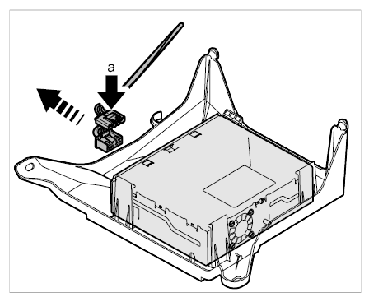

    Fig 1: Removing Electric Plug Connector
    G09830495Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lift the four lugs on the TV tuner aside and remove the TV tuner in an upward direction.

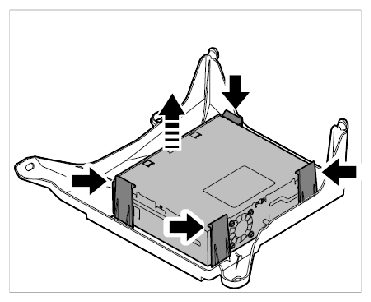

    Fig 2: Removing TV Tuner From Holder
    G09830496Courtesy of PORSCHE CARS NORTH AMERICA, INC.
