Installing TV Tuner

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Press the TV tuner into the four lugs until all four lugs on the TV tuner housing engage securely.

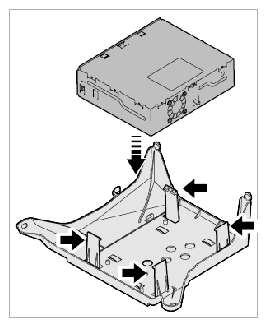

Fig 1: Installing TV Tuner Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in the two electric connectors on the TV tuner until they engage securely.

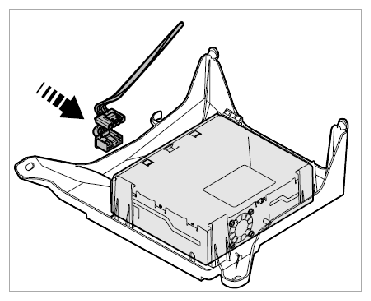

Fig 2: Installing Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
