Installing GPS Antenna

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the GPS antenna on the cowl panel cover.

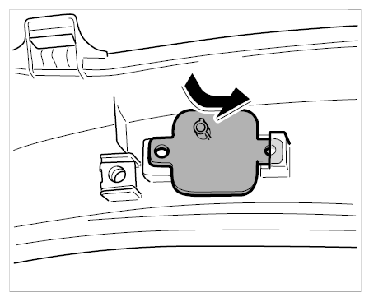

    Fig 1: Installing GPS Antenna On Cowl Panel Cover
    G09830490Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure the GPS antenna with the fastening screw -1-  .

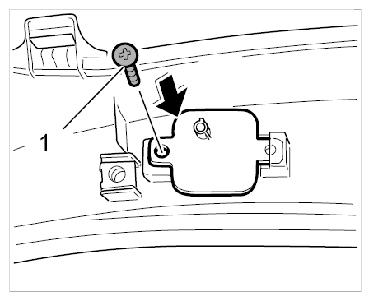

    Fig 2: Installing GPS Fastening Screw
    G09830491Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit the splash guard for the particle filter back on the cowl panel cover.
  4. When installing the cowl panel cover, push on the electric connector until the connector engages securely.

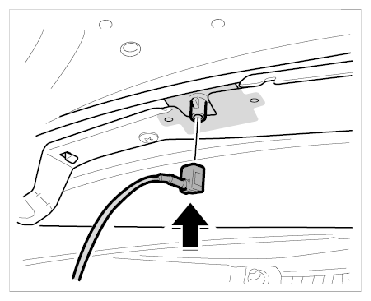

    Fig 3: Installing GPS Electric Plug Connection
    G09830492Courtesy of PORSCHE CARS NORTH AMERICA, INC.
